Specifications
Place of Origin :
China(mainland)-Guangdong
Brand Name :
AMEISON
Model Number :
outdoor wifi panel antenna
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang(MHz) :
2400-2483
Gain(dBi) :
14
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N-female or Requested
Description

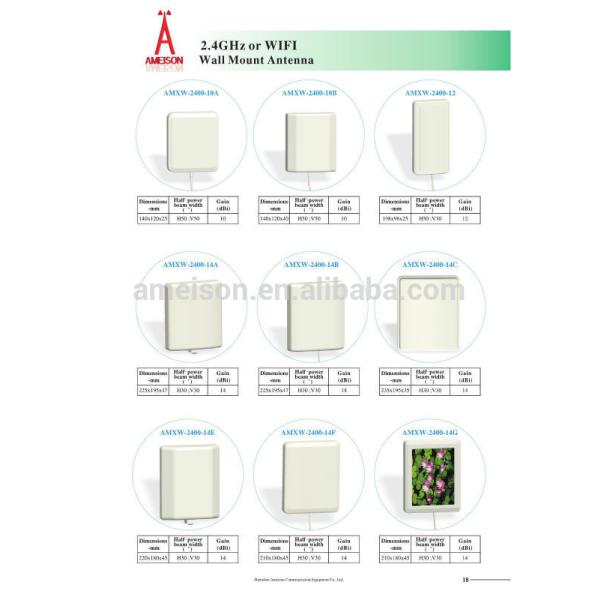

2400 - 2483MHz Directional Wall MountFlat Patch PanelAntenna

AMXW-2400-14B

2.4G/14dBi panel Antenna

The wall mount antennas have excellent features such as beautiful appearance, high gain, anti-jamming ability,low VSWR. It can be applied to buildings, elevators, streets, parking and many other occasions. The Wall mount antenna housings with PVC material injection molding, can effectively prevent the antenna from acid rain, oxidation, alkali, salt spray and other corrosion in the harsh environment ,to ensure long-term use indoor and outdoor.

Specification:

2.4G WiFi/WiMAx outdoor patch panel antenna
2.4 GHz ISM band,
2.4 GHz spread spectrum communication system,
WiFi,WIMAX

Feature:

  1. High gain, strong anti-interference ability
  2. Good defense system
  3. Full day working
  4. Exquisite appearance
  5. Optimized dimension

Application:

  1. 2.4 GHz WLAN system2.4 GHz ISM frequency band
  2. WiFi frequency bandcommunication system

AMXW-2400-14B

Electrical Specifications

Frequency range(MHz)

2400-2483

Bandwidth(MHz)

83

Gain(dBi)

14

half-power beam width(°)

H:30 V:30

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N-female or Requested

Mechanical Specifications

Input connector type

225*195*47

Antenna weight(kg)

0.45

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Waterproof Standard

IP54/ IP65/ IP67

Mounting way

wall-hanging or pole-holding

Mounting hardware(mm)

35-50

Ameison Antenna 2400 - 2483MHz (2.4GHZ) 14dBi Wifi GSM Directional Wall Mount Flat Patch Panel Outdoor AntennaAmeison Antenna 2400 - 2483MHz (2.4GHZ) 14dBi Wifi GSM Directional Wall Mount Flat Patch Panel Outdoor AntennaAmeison Antenna 2400 - 2483MHz (2.4GHZ) 14dBi Wifi GSM Directional Wall Mount Flat Patch Panel Outdoor AntennaAmeison Antenna 2400 - 2483MHz (2.4GHZ) 14dBi Wifi GSM Directional Wall Mount Flat Patch Panel Outdoor Antenna

Company Information

Welcome toAmeison Communication Equipment Co.,Ltd, we are leading antenna manufacturer in China.

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.

OEM is welcome. Please contact us when you need any antennas!
