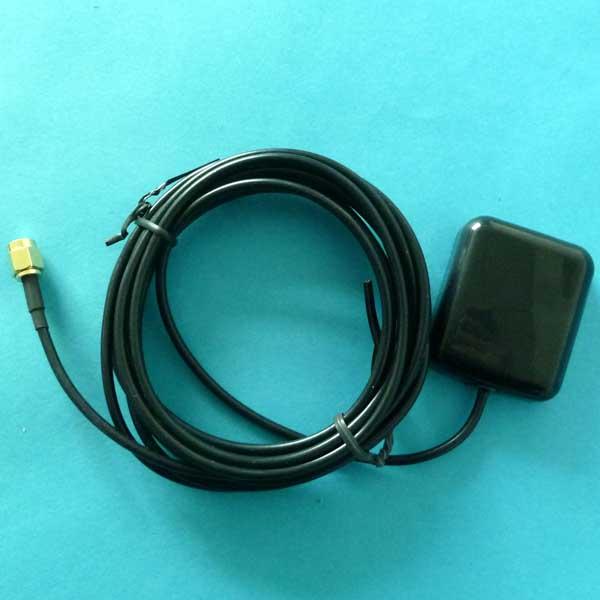

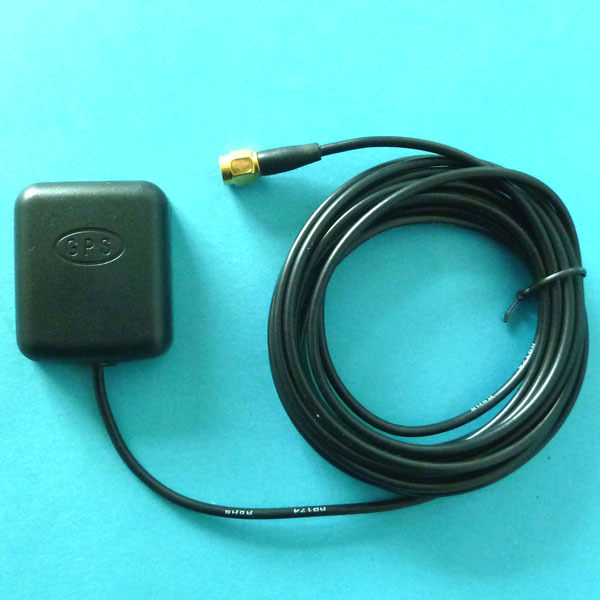

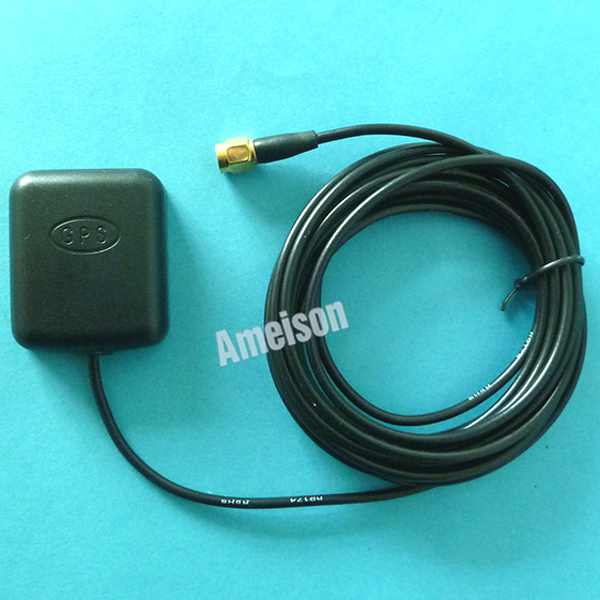

SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
Specifications
Place of Origin :
China(mainland)-Shenzhen
Brand Name :
AMEISON
Model Number :
AMXGPS-1575.42-28A
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang(MHz) :
1575.42±5
Gain(dBi) :
5±0.5
LNA(dBi) :
LNA(dBi)
Polarization :
RHCP
Connector type :
SMA Male
Description

SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna

GPS antenna

AMXGPS-1575.42-28A

Description:

  1. SMA Male Straight GPS Antenna with 3 meters Cable.
  2. So advanced and scientific of this GPS Antenna, bring convenient for your daily use.
  3. With SMA Male Antenna, your GPS will catch more satellites and get stronger signal.
  4. The base of the antenna is magnetic so it will adhere to any metal surface.
  5. Straight GPS Antenna is ready to plug in and use.
  6. With excellent performance and good quality of this SMA GPS Antenna.

Features:

  1. Good Sensibility
  2. Accessible to various satellites
  3. Strong singal,accurate positioning.
  4. Ferromagnetic, strong anti-waterproofing ability

Applications:

  1. VehicleNavigation
  2. Security and tracking system
  3. Global Satellite Positioning System

AMXGPS-1575.42-28A

Electric Specification

Frequency rang(MHz)

1575.42±5

Bandwidth(MHz)

10

Gain(dBi)

5±0.5

LNA(dBi)

28

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

RHCP

Voltage(V)

3 /5

Rated Electric Current(mA)

≤20

Connector type

SMA Male

Mechanical Specification

Size(mm)

46*38*13

Cable length(m)

3.0

Working Temperature(°C)

-30~60

Radome color

Black

SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antennaSMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antennaSMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antennaSMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna
SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antennaSMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna

Design

However often you use your GPS system, the GPS antenna can help improve your signal. Occasional users can enjoy the convenience and flexibility of the magnetic mounting system, which can be fitted, removed and re-positioned as many times as required. If you are a more regular user, then the tough magnet in the GPS antenna will hold it securely in place ensuring that you never lose your antenna or signal.

In order for GPS antennas to consistently provide truly accurate positioning data, they must communicate with as many satellites as possible at any one time. Ameison has invested in software that enables us to monitor which satellites can be seen by an antenna. This greatly helps the development process, allowing us to see how our antennas perform under real conditions.

Company Information

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.

SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antennaSMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass for ipad mini gps antenna

Our Services

provide you:

high quality products

better product pre-sales and after-sales service

attractive prices

shorter delivery
