Specifications
Place of Origin :
China(mainland)-Guangdong
Brand Name :
AMEISON
Model Number :
AMXGPS-1575.42-28B
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang(MHz) :
1575.42±5
Gain -dBi :
5±0.5
LNA-dBi :
28
Polarization :
RHCP
Connector model :
SMA female or others
Description

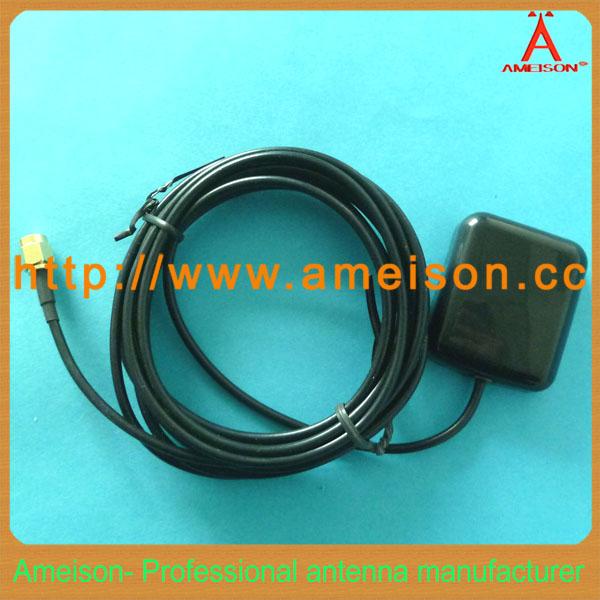

Magnetic Mount RG174 3M cable 5dBi glonass car tv gps antenna

GPS antenna

AMXGPS-1575.42-28B

Specifications

Supporting both GPS and GLONASS frequencies, this antenna is suitable for telematics and M2M applications.

This car tv gps antenna is a cost-effective GPS/GLONASS active magnetic patch antenna. Supporting both GPS and GLONASS frequencies, this antenna is suitable for telematics and M2M applications.

GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle-mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies.

Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The antenna features 5 dB gain low noise amplifier and a SAW filter. With 4.5 to 5.5 volt operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systemsavailable.

Antenna SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass car tv gps antenna

Features:

Good Sensibility

Accessible to various satellites

Strong singal,accurate positioning.

Ferromagnetic, strong anti-waterproofing ability

Applications:

Vehicle Navigation

Security and tracking system

Global Satellite Positioning System

AMXGPS-1575.42-28B

Electric Specification

Frequency rang-MHz

1575.42±5

Bandwidth -MHz

10

Gain -dBi

5±0.5

LNA-dBi

28

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

RHCP

Voltage

3 /5

Electric Current-mA

≤20

Connector model

SMA female or others

Mechanical Specification

Size -mm

46*38*13

Cable length-m

3

Antenna weight-kg

0.8

Working Temperature -°c

-30~60

Radome color

Black

Company Information

Welcome to Ameison Communication Equipment Co.,Ltd, we are leading antenna manufacturer in China.

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.

OEM is welcome. Please contact us when you need any antennas!
