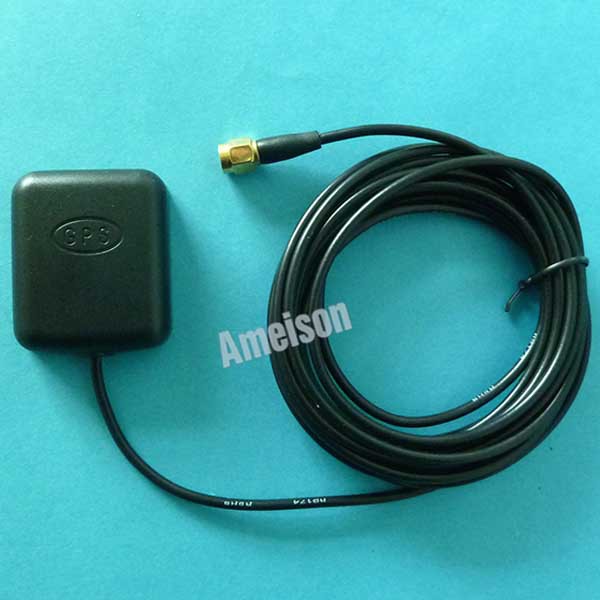

Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable
Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable
Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable
Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable
Specifications
Place of Origin :
China(mainland)-Guangdong
Brand Name :
AMEISON
Model Number :
AMXGPS-1575.42-28A
Certification :
RoHS and REACH Compliant by Exemption
Frequency rang(MHz) :
1575.42±5
Gain(dBi) :
5±0.5
LNA(dBi) :
28
Polarization :
RHCP
Connector type :
SMA Male
Description

GPS antenna

AMXGPS-1575.42-28A

Description:

  1. SMA Male Straight GPS Antenna with 3 meters Cable.
  2. So advanced and scientific of this GPS Antenna, bring convenient for your daily use.
  3. With SMA Male Antenna, your GPS will catch more satellites and get stronger signal.
  4. The base of the antenna is magnetic so it will adhere to any metal surface.
  5. Straight GPS Antenna is ready to plug in and use.
  6. With excellent performance and good quality of this SMA GPS Antenna.

Features:

  1. Good Sensibility
  2. Accessible to various satellites
  3. Strong singal,accurate positioning.
  4. Ferromagnetic, strong anti-waterproofing ability

Applications:

  1. VehicleNavigation
  2. Security and tracking system
  3. Global Satellite Positioning System

AMXGPS-1575.42-28A

Electric Specification

Frequency rang(MHz)

1575.42±5

Bandwidth(MHz)

10

Gain(dBi)

5±0.5

LNA(dBi)

28

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

RHCP

Voltage(V)

3 /5

Rated Electric Current(mA)

≤20

Connector type

SMA Male

Mechanical Specification

Size(mm)

46*38*13

Cable length(m)

3.0

Working Temperature(°C)

-30~60

Radome color

Black

Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable
Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m CableOutdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m CableOutdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable

Company Information

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.

Outdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m CableOutdoor/Indoor Magnetic Vehicle Navigation GPS Antenna with SMA Connecter 3m/5m Cable

Our Services

provide you:

high quality products

better product pre-sales and after-sales service

attractive prices

shorter delivery
