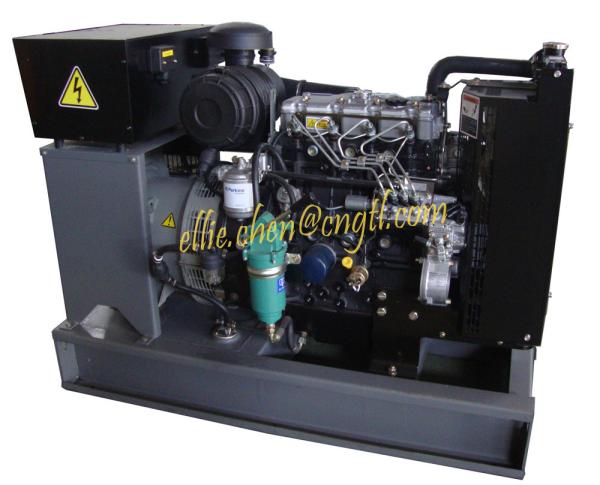

20kva Perkins diesel engine generators, AC electric generator
20kva Perkins diesel engine generators, AC electric generator
Specifications
Place of Origin :
China
Brand Name :
GTL
Certification :
CE, ISO9001, ISO14001
Model Number :
PW-20T5
Controller :
Deepsea, Woodward, DEIF,ComAp, Smartgen
Speed :
1500rpm
Frequency :
50Hz
Rated Power :
16kw/20kva
Rated Voltage :
400V
Rated Current :
28
Output Type :
AC Three Phase
Description

20kva Perkins diesel engine generators, AC electric generator

The overall performance and reliability characteristics makes this one of the prime choices for today’s power generation industry.

* Perkins engine generator: Individual 4 valve per cylinder give optimised gas flows, while unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion for efficiency and economy

* Reliable diesel engine generator set: All engines are tolerant of a wide range of temperatures without derate

* Efficient electric generator sets: Designed to provide excellent service access for ease of maintenance

* Clean power generating set: Low gaseous emissions for cleaner operation

General Data

Prime power (kva/kw): 20/16

Standby power(kva/kw): 22/18

Voltage/Frquency/Phase: 400V/50Hz/3 phase

Engine Data

Brand: UK Perkins

Model: 404A-22G1

Number of Cylinders: 4

Bore x Stroke: 84x100

Rated RPM: 1500

Base output power (KW): 20.3

Displacement (L): 2.216

Compression ratio: 23.3:1

Combustion system: Direct injection

Induction system: Naturally aspirated

Economic consumption Generator (L/h)

Standby power: 6.1

100% prime power: 5.3

75% prime power: 4.0

50% prime power: 2.9

Alternator Data

Brand: Stamford, Leroy Somer, Marathon or MeccAlte

Voltage: 400V

Frequency: 50Hz

Number of phase: 3

Power factor(COS phi): 0.8

Voltage regulation: AVR

Altitude (m): 1000

Ambient temperature (℃):

Insulation class: H

Bearing: Single

Coupling: Direct

Genset dimension

Open generator (mm): 1250*700*1150

Weight (kg): 630

Container generator (mm): 1900*1060*1750

Weight (kg): 980
