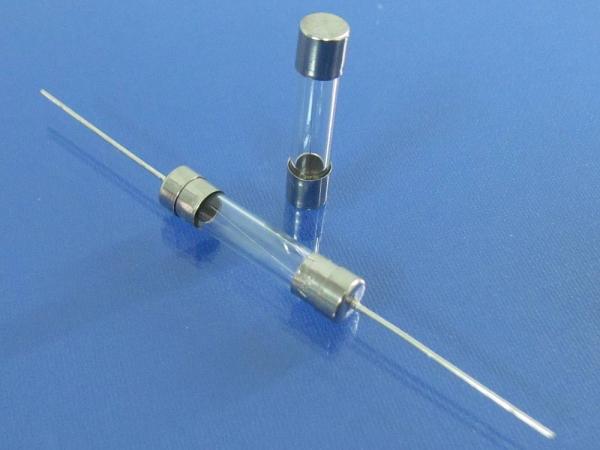

Glass Fuse 6x30mm Time-Lag 250V 500mA 1A 1.25A 1.5A 2A 2.5A 3A 3.15A 3.5A 6.3A 7A 10A UL
Glass Fuse 6x30mm Time-Lag 250V 500mA 1A 1.25A 1.5A 2A 2.5A 3A 3.15A 3.5A 6.3A 7A 10A UL
Specifications
Place of Origin :
CHINA
Brand Name :
JK
Certification :
ROHS,ISO 9001,UL,CUL.PSE
Model Number :
6GM
Description

Glass Fuse 6x30mm Time-Lag 250V 500mA 1A 1.25A 1.5A 2A 2.5A 3A 3.15A 3.5A 6.3A 7A 10A UL

Dimensions

Glass Fuse 6x30mm Time-Lag 250V 500mA 1A 1.25A 1.5A 2A 2.5A 3A 3.15A 3.5A 6.3A 7A 10A UL

Product:Time-Lag Type

Model::6GM

Product Characteristics

Materials
Body:Glass tube
Lead:Tinned copper wire
Cap:Brass with nickel plated
Element:Alloy

Operating Temperature
-55℃ to + 125℃ (consider de-rating)

Solder ability
260 ℃, ≦ 3s. (wave)
350±10 ℃, ≦ 3s. (soldering iron)

Resistance to Soldering Heat
260 ℃, 10s. (wave)
350 ℃, 5s. (soldering iron)

Storage Conditions

Can be stored for 3 years under tight seal condition at temperature
of +10℃~60℃, relative humidity ≤ 75%.
At most can be kept 30 days at temperature +10℃~60℃,
relative humidity ≤ 95% under covered conditions.

I-T Characteristics

Ampere Rating

% of Ampere Rating

Opening Time

100mA~30A

100%

4Hrs Min.

135%

1Hrs Miax.

200%

120s Miax.

1000%

10s Min.
