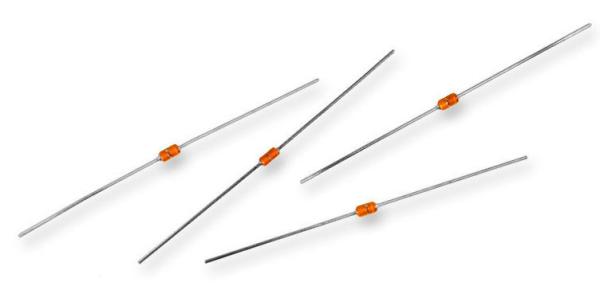

Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads
Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads
Specifications
Place of Origin :
CHINA
Brand Name :
JK
Certification :
ROHS,ISO 9001,UL
Model Number :
MF58
Description

Quick details

  • Good stability and repeatability
  • High reliability
  • Wide range of resistance: 0.1~1000KΩ
  • Tight tolerance on resistance and Beta values
  • Usable in high-temperature and high-moisture environments
  • Small, light, strong package,
  • High sensitivity

Description

The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques. It is equipped with tinned axial leads and then wrapped with purified glass.

Application

Temperature compensation and detection for:

  • Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
  • Industrial, medical, environmental, weather and food processing equipment
  • Liquid level detection and flow rate measurement
  • Mobile phone battery

Specification

Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads Dimension
Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads

Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads Specifications

Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads

Glass DO-35 Series Thermistors,Temperature Sensors,Encapsulated NTC Thermistors with Leads Main Techno-Parameter

• Zero power resistance range (R25): 0.1~1000KΩ
• Available tolerances of R25:
F= ±1% G= ±2% H= ±3% J= ±5% K= ±10%
• B value (B25/50°C) range: 3100~4500K
• Available tolerances of B value: ±0.5%, ±1%, ±2%
• Dissipation factor: ≥2mW/°C (In Still Air)
• Thermal time constant: ≤20S (In Still Air)
• Operating temperature range: -55°C ~ +200°C
• Rated Power: ≤50mW
