One Colour Sliding Ink Cup Pad Printing Machine
One Colour Sliding Ink Cup Pad Printing Machine
Specifications
Place of Origin :
Dongguan, China
Brand Name :
PROMISE
Certification :
CE
Model Number :
JN-CP1-160CS
Description

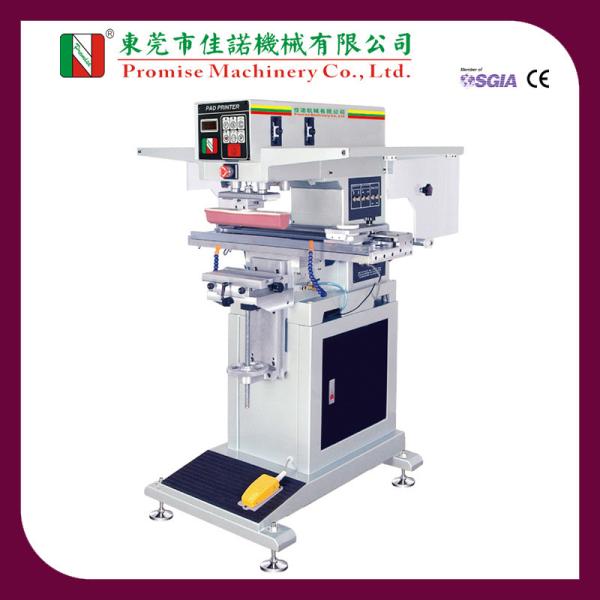

One Colour Sliding Ink Cup Pad Printing Machine JN-CP1-160CS

This one colour ink cup pad printer with sliding mode sealed cup, increase ink cup trip on the basis of conventional pad printers, special for long image printing, to avoid big size machine.

Ink cup machines are more environmentally friendly than ink tray machines, and they can save 60% ink and 90% thinner comparing with those of open ink tray.

Simple operation, easy maintenance and repair, high performance-price ratio make this pad printer the best choice by most customers.

Specifications:

Model No. JN-CP1-160CS
Operation Pneumatic
Printing Colors 1
Work Station 1
Pad Stroke 160mm
Standard Plate Area 100*500mm
Ink Cup Diameter Ø 90mm
Max. Printing Size 70*280mm
Max. Printing Height 280mm
Max. Printing Speed 600 Pcs/Hr
Wattage 220V/110V, 50Hz/60Hz
Power 35W
Air Pressure 6 Bar
Air Consumption 58 Liter / Min
Machine Dimension 770*820*1400mm(LxWxH)
Machine Weight 120 Kg


Features:

1. Advanced computerized system control, easy operation panel.
2. Pneumatically driven adopt from German FESTO, can adjust the movement speed of each part.
3. Built-in LED digital counter.
4. Emergency stop system to ensure the safety of operator.
5. Light-weight, strong aluminum cast machine frame structure sturdiness.
6. Sealed in cup, work table and pads are independently adjustable for easy color registration.
7. Printing speed, print pad and printing stroke are easily adjustable for different printing requirements.
8. Sealed cup, doctor blade, brush and pads are easily installed and dismounted for quick cleaning.
9. The sealed ink cup driven by cylinder, can be slide more smoothly.
10. Quick adjusting X, Y base, accurate color registration.
11. Easy clean ink cup, quick plate change.
12. Hot air dryer optional.
