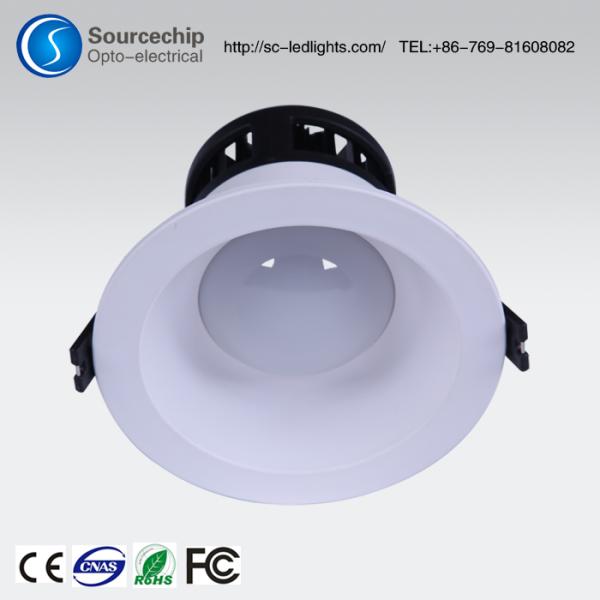

led up down light / new high quality LED down light procurement
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. has a history of 12 years in the field of LED lighting development. We have our own R & D department continuously improve the performance of LED lamps. Here to introduce you to this led up down light, can be used for shopping malls, hotels, senior housing, senior clubs and other places of lighting. If you want to know the details of the led up down light, can contact us by e-mail.

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. xnyuantian01
Sourcechip led up down light Contact E-mail:
Sourcechip led up down light website 1:
Sourcechip led up down light website 2:
Sourcechip led up down light Tel: +86-769-81608082
Sourcechip led up down light Fax: +86-769-81608083
Sourcechip led up down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

LED C-series Downlight Specification

led up down light / new high quality LED down light procurementled up down light / new high quality LED down light procurement

LED Model No.

SC-DLC009W01-30

SC-DLC009W01-40SC-DLC009W01-60

Rated power

7W

Consume power

9±1W

Input Voltage

AC 100-240V

Output Voltage

18-24V

Input current

300mA±5%

Efficiency

≥80%

Cutout:

Φ120mm

P.F

≥0.50

Light Source CRI

Warm white

Natural white

Pure white

3000±200k

4000±300k

6000±300k

Light Source Luminous flux(lm)

≥20LM

≥21LM

≥21LM

Lighting CCT

3000±300k

4000±300k

6000±500k

Lighting LM

450±30LM

550±30LM

550±30LM

Lighting View Angle

90°

Lighting CRI

≥70/≥80

Key point temperature
(during aging test)

LED Welding foot

Lamp shell

≤75°C

≤70°C

Working Temp.

-10°C~40°C / R.H.≤85%

Storage Temp.

-30~65°C

Life span

25,000 HR

IP Rate

IP20

led up down light / new high quality LED down light procurement

Detail of LED DownLight

led up down light / new high quality LED down light procurement

1.energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires

2.Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability

3.Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 25000 hrs..

4.Can be frequent starting, no flickering and glaring; high CRI;shock-resistant.

5.Simple & elegant appearance, newly & attractive design, suit for many illumination places.

Effect of LED DownLight

led up down light / new high quality LED down light procurement

Processes of Packaging
led up down light / new high quality LED down light procurement
Application of LED DownLight

led up down light / new high quality LED down light procurement

led up down light / new high quality LED down light procurement

led up down light / new high quality LED down light procurement

led up down light / new high quality LED down light procurement

led up down light / new high quality LED down light procurement

Service and Business Terms of LED DownLight
  1. You inquiry will be replied in 12 hours.
  2. All your inquiries will be answered in fluent English by well-trained & professional staffs.
  3. We supply OEM & ODM service for our client, natural packing and customer's packing style available without extra cost.
  4. Many optional payment terms: L/C, T/T, Western Union, Paypal, Escrow etc, guaranty customer receive high quality products.
  5. Many Optional delivery / shipping methods: by ship, by air plane, by commercial express, specific line transportation, by post, etc, guaranty the goods reach customer on time with less freight cost.
