25w 8 inch recessed led down light wholesale sales
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
1.Product Features
1. energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
2. Isolated low voltage constant current driver, over current protection,
over voltage protection and output short circuit protection; High safety, stability and reliability;
3. Adopt import light source and advanced heat dissipation technology,
product malfunction life span achieve to 50000 hrs.
4.Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
5. Simple & elegant appearance, newly & attractive design, suit for many illumination places.
2.LED downlight light
3.Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | 1W igh-power | wide Input driver, EMC approved | silver-gray |
4. Specification
LED Model No. | SC-DLM025W01-30 | SC- DLM025W01-40 | SC- DLM025W01-60 |
Power | 25±1.5W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 30-33V | ||
Input current | 750mA±5% | ||
Efficiency | ≥85% | ||
Cutout | Ф198mm | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 1925±100LM | 2025±100LM | 2125±100LM |
Lighting View Angle | 40° | ||
Lighting CRI | ≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 |

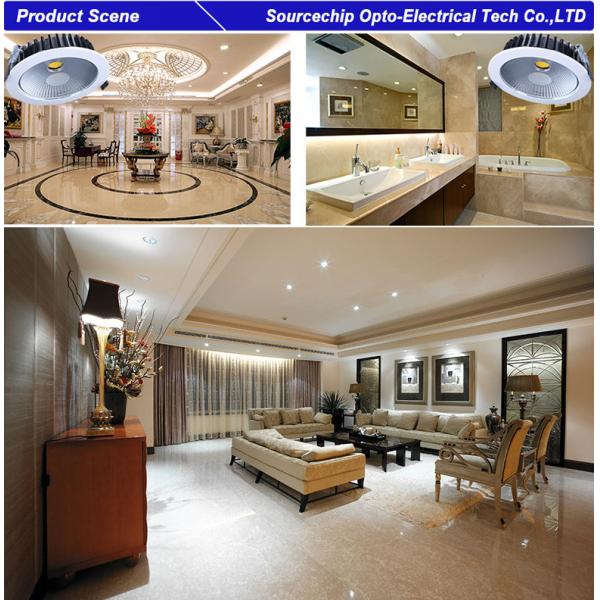

5.Application
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
6.Payment
7.Shipment
We ship by commercial express,Air freight,Ship.
8.Packing, transportation & storage requirement
8.1, Packing Material
Name | Description | QTY | ||
PE bag | 300*270mm | 1pcs | N.W | 12±3g |
White box | L203*W164*H155mm | 1pcs | N.W | 750±30g/1PCS |
Big carton case | 633×516×333mm | 1/18pcs | G.W | 15±0.5kg/carton |
8.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
8.3,Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;
8.4,Storage requirement: moistureproof,dustproof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;
8.5,storage expires: One year. exceed the expire time must Re-inspect electricity function before use.
9.Our company
10.Certification
