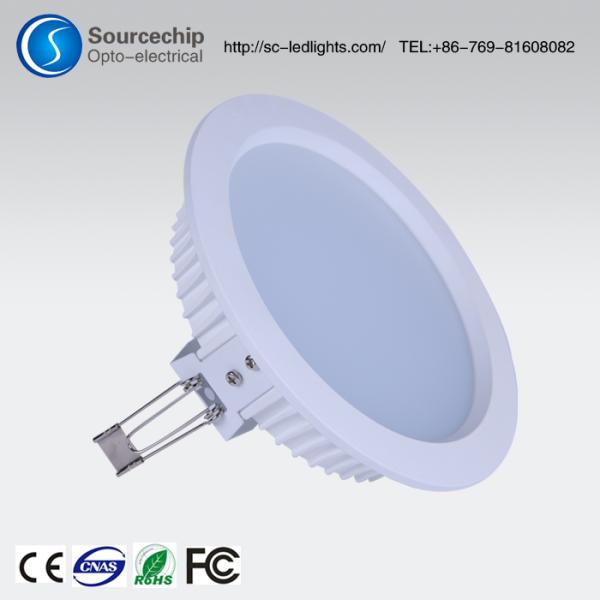

High quality LED down light - quality 8 inch recessed led down light
High quality LED down light - quality 8 inch recessed led down light
Specifications
Place of Origin :
China
Brand Name :
Sourcechip
Model Number :
SC-DLA030W01
Certification :
CE, FCC, RoHS, UL
Contact E-mail :
sales008@sourcechip.com
website 1 :
http://www.sc-ledlights.com/
website 2 :
http://www.sc-leddownlights.com/
Description

High quality LED down light - quality 8 inch recessed led down light
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. is a leading Chinese manufacturer of LED lamps. We are also a number of internationally renowned enterprises business relationships, such as Philips, Op, NVC and so on. Here we provide customers the 8 inch recessed led down light. The 8 inch recessed led down light electrical properties are as follows. If you need this 8 inch recessed led down light, please contact us by e-mail.

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip 8 inch recessed led down light Tel: +86-769-81608082
Sourcechip 8 inch recessed led down light Fax: +86-769-81608083
Sourcechip 8 inch recessed led down light Contact E-mail: xinxinlong001
Sourcechip 8 inch recessed led down light website 1:
Sourcechip 8 inch recessed led down light website 2:
Sourcechip 8 inch recessed led down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

LED A-series Downlight Specification

High quality LED down light - quality 8 inch recessed led down lightHigh quality LED down light - quality 8 inch recessed led down light

LED Model No.

SC-DLA030W01-30

SC-DLA030W01-40SC-DLA030W01-60

Rated power

26W

Consume power

30±2W

Input Voltage

AC 100-240V

Output Voltage

32-42V

Input current

600mA±5%

Efficiency

≥85%

Cutout:

Φ200mm

P.F

≥0.90

Light Source CRI

Warm white

Natural white

Pure white

3000±200k

4000±300k

6000±300k

Light Source Luminous flux(lm)

≥50LM

≥55LM

≥60LM

Lighting CCT

3000±300k

4000±300k

6000±500k

Lighting LM

2400±150LM

2450±150LM

2550±150LM

Lighting View Angle

120°

Lighting CRI

≥70/≥80

Key point temperature
(during aging test)

LED Welding foot

Lamp shell

≤75°C

≤70°C

Working Temp.

-10°C~40°C / R.H.≤85%

Storage Temp.

-30~65°C

Life span

25,000 HR

IP Rate

IP20

High quality LED down light - quality 8 inch recessed led down light

Detail of LED DownLight

High quality LED down light - quality 8 inch recessed led down light

1.energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires

2.Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability

3.Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 25000 hrs..

4.Can be frequent starting, no flickering and glaring; high CRI;shock-resistant.

5.Simple & elegant appearance, newly & attractive design, suit for many illumination places.
