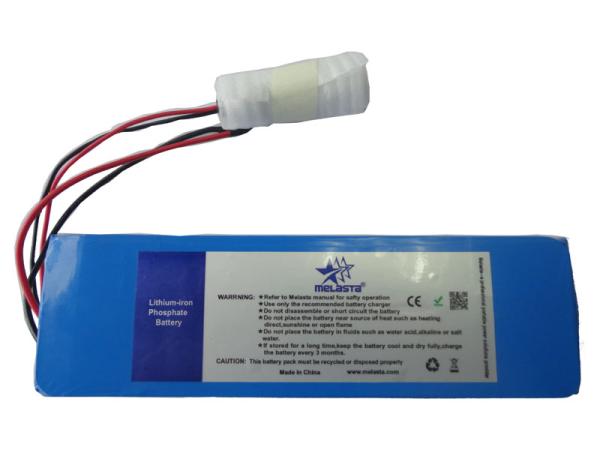

24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
Specifications
Place of Origin :
China
Brand Name :
Melasta
Model Number :
LFP8072196
Certification :
CE, ROHS, KC, UN
Description

24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter

Advantage:

1. No memory effect
2. High quality and long cycle life
3. Environmental friendly
4. Low internal resistance
5. OEM or ODM is welcomed

Applications:

Lithium polymer batteries can be applied to E-bicycle, E-scooter, Electric Wheelchair, Power tools, Electric golf cart, lawn mowers and other products.

Certification and Test Report:

CE(EMC directives ), RoHS and KC(Korea Certificate), MSDS, UN38.3, 1.2m Drop test, Cargo Transportaion Test Report

Warning:

1. Polymer Li-ion battery may cause fire if misusing. We are not responsible for any damages or losses caused by misusing (included but not limited to: Improperly charging/discharging, any changes of this battery pack, disassembling battery packs).
2. Always charge battery with attention. Battery pack shall be placed on a fire-proof place to avoid any accident
3. Please check battery polarity before connect to device
4. Please read more safety warning about MELASTA polymer Li-ion battery

NO.ItemGeneral ParameterRemark
1Rated CapacityTypical10000mAh0.5C discharge after standard charge
2Norminal Voltage24VMean operation voltage
3Voltage at end of discharge16.0Vdischarge cut-off voltage
4Charging Voltage29.2V
5Internal Impedance≤100mΩInternal resistance measured at AC 1KHz after 50% charge
6Standard chargeConstant Current 0.2C5A Constant Voltage 29.2V 0.02 C5A cut-offCharge time:Approx 6.0h
7Standard dischargeConstant current 0.2C5A end voltage 16V
8Fast chargeConstant Current 0.2C5A Constant Voltage 29.2V 0.02 C5A cut-offCharge time:Approx 3.5h
9Fast dischargeConstant current 1.5C5A end voltage 36.8V
10Maximum Continuous Charge Current0.4C5ACharge time:Approx 3.6h
11Maximum Continuous Discharge Current1.5C5APeak Discharge Current
12Operation Temperature RangeCharge:0~45 degrees Celsius60±25%R.H. Bare Cell
Discharge:-20~70 degrees Celsius
13Storage Temperature RangeLess than 1 year: -20~25 degrees Celsius60±25%R.H. At the shipment state
Less than 3 months:-20~40 degrees Celsius
14Battery DimensionsHeight:213mmAssembling Dimension
Width:62mm
Thickness:73mm

24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter

24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter

24V 10Ah LiFePO4 Battery Pack For E-Bicycle , E-Scooter
