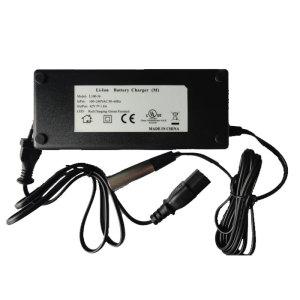

42V 2A Li-ion Battery Pack Charger / Electric Charger L100-36
42V 2A Li-ion Battery Pack Charger / Electric Charger L100-36
Specifications
Place of Origin :
china
Brand Name :
melasta
Model Number :
L100-36
Certification :
CE, ROHS, KC, UN
Description

42V 2A Li-ion Battery Pack Charger / Electric Charger L100-36

Basic Information:

Model NO.:L100-36
Type:Lithium-Polymer Battery Charger
Charging Type:Electric Charger
Principle:CC-CV Charger
Export Markets:Global

Additional Information:

Trademark:MELASTA
Packing:Melasta Standard Carton
Standard:CE
Origin:China
HS Code:8504409990
Production Capacity:1million/Week

Protection
1.The charger's internal relay makes the output voltage is less than 5.5v with no-load, when the output is connected to a battery, the output voltage of charger is normal
2.Short circuit protection:When the output of charger is shorted, the charger will close output automatically without any damage
3.Reverse polarity protection:When the output is connected to a battery reversely, the charger will close output automatically without any damage
4.Overheating protection:The internal temperature exceeds 80 ° c, the charger will close output automatically

Specification:

L100-36 24v li-ion battery pack charger lithium polymer battery charger electrical bike
Output protect:Over curent, over voltage, short-circuit protrction and reverse polarity protection.
Application:Power tool, eletrical bike, eletrical toy, mobile lamp, security system and so on.
Safety approve:Ce, ul, ccc

No.ItemSpecification
1ModelL100-36
2Charge ModelCC Then CV
3Rating Input Voltage100~240Vac 50/60Hz
4Rating output voltage42V
5Output voltage range30~ 42.5V
6Suit with Battery type36V 5~12Ah
7Constant Charge current1.8 ±0.2A
8Constant Voltage>42V
9Charge end current<0.2
10Typical charge time4~5 hours
11Max. output power80W
12LED colorRed: charging Green: finish/idle
13Operate temperature-10 °C~ +40°C
14Operate humidity< +90 %RH
15Storage temperature-40 °C~ +70°C
16Storage humidity0 ~ +95 %RH
17Weight335g
18Size171mmX71mmX40mm
19Efficiency>80%

42V 2A Li-ion Battery Pack Charger / Electric Charger L100-36
