NiMH Rechargeable Battery Pack 18V 15Ah For Electric Wheelchair / E-scooter
NiMH Rechargeable Battery Pack 18V 15Ah For Electric Wheelchair / E-scooter
Specifications
Place of Origin :
China
Brand Name :
Melasta
Certification :
CE, ROHS, KC, UN
Description

NiMH Rechargeable Battery Pack 18V 15Ah For Electric Wheelchair / E-scooter

Packaging Details

Unit Type:piece

Package Weight:4.500kg (9.92lb.)

Package Size:30cm x 10cm x 7cm (11.81in x 3.94in x 2.76in)

Warranty: 1 year

Item specifics

Place of Origin:Guangdong China (Mainland)

is_customized:Yes

Type:NI-MH

Brand Name:Melasta

Voltage:18V

Size:272.5mmx 66.5mm x 93mm

Nominal Capacity:15Ah

Weight:3.9kg

Model Number:F

Application:E-car, E-bike, e-scooter, e-bicycle.

Composed Type:15S1P

Application:

This batteries pack can be applied to E-bicycle, E-scooter, Electric Wheelchair.

Details

  • Customized 18V 15Ah NiMH battery pack is made of 15 pcs High quality Melasat brand NiMH size F cells.
  • Capacity: 15000 mAh ( 15 Ah, or 270 wh)
  • Standard Discharging Rate: 1C at 15A
  • Max. Discharging rate : 40A ( Not recommend as working rate )

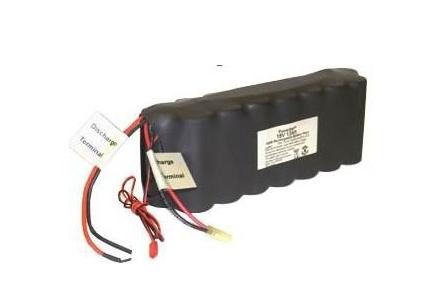

  • Three terminals from the battery pack
    1. Charging terminal: 16 AWG, 4" length wire with mini Tamiya connector with built in 70oC thermostat to protect battery over-charged. You must use the terminal for charging
    2. Discharging terminal: 14 AWG, 6" length wires. Max. discharging rate at 39 Amp
    3. Temperature sensor (BEC male plug) , which can be connected to smart charger for protect battery over-heated during charging. ( Must attach temperature sensor to battery pack when charging, and we are not take any responsibility if you use other brand charger to recharge the battery pack)

​​

  • The battery is well packed by Heavy Duty PVC shink, which make this pack ultra strong.
  • Dimension: 272.5mm x 93mm x 66.5mm
  • Weight: 3990 grams
  • For faster and safe charging, strong suggest you use our New 9.6-18V Universal Smart charger

Must connect temperature sensor (BEC male plug) between battery charger(BEC Female connector) and battery pack before charging to protect battery from overcharging or explode. We are not responsible for any damage caused by mis use.
