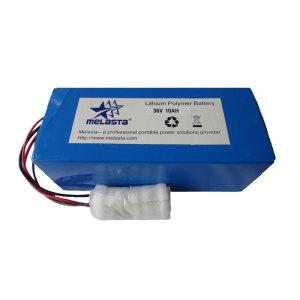

Lithium Polymer Battery Pack / E-Bike Battery Pack 36V 10Ah
Lithium Polymer Battery Pack / E-Bike Battery Pack 36V 10Ah
Specifications
Place of Origin :
China
Brand Name :
Melasta
Model Number :
LP8270170-10S1P
Certification :
CE, ROHS, KC, UN
Description

Lithium Polymer Battery Pack / E-Bike Battery Pack 36V 10Ah

Product Description

Melasta 36V 10Ah li-po battery pack

Application: E-Scooter, E-bike, Wheelchairs, Power tolls, etc.
Certification: CE, RoHS, KC, UN.

Basic Information:

Model NO.:LP8270170-10S1P
Type:Li-ion Battery Pack
Connection Mode:Series and Parallel
Export Markets:Global

Additional Information:

Trademark:MELASTA
Packing:Melasta Standard Carton
Standard:CE, ROHS, KC
Origin:China
HS Code:85078010
Production Capacity:20, 000PCS/Month

Item Specification:
1. Model Lithium Polymer battery LP8270170
2. Nominal Capacity: 10000mAh
3. Nominal Voltage: 37V
4. Cycle Life >500 times
5. Charge Voltage: 42V
6. Standard Charge Rate( C): 1C
7. Max Charge Rate( C): 3C
8. Max Continous Dicharge Rate( C): 0.5C5AC
9. Peak Dicharge Rate( C): 1.0C5A
10. Discharging End Voltage: 30V
11. Cell Size: 8.2X 70 X 170mm
12. Weight Approx (g): 2430g
13. Operating Temperature:
Charge: 0--45 Celsius degree
Discharge: -20--70 Celsius degree
PS: The battery have passed Vibration Test, Drop Test, short circuit, Oven test and Nail test so on.

PackageMELASTA Li-Po Battery Pack: 36V 10Ah (360Wh ,10A) with PCM
Output voltage36V working voltage, peak voltage @43.8V,30V cut-off
Battery Capacity10Ah(360 Wh)
Cycle life> 500 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
ProtectionOne PCM (30A/60A limited) installed with the battery pack and protects the battery from
Overcharge (> 43.8 V)
Over discharge (<30V)
Over drain ( > 30Amps)
Short circuits
Must wait min of 30 minutes after battery is fully charged to allow the PCM to perform balance function on all the cells within the pack.
Prewired255mm long 12AWG open end wire
Red = Positive
Black = Negative
Charging rate10 A Max
Max. Discharging Rate10A continuous limited by PCM
30A < 30 seconds limited by PCM
Charging temperature:0 to 45 degrees Celsius
Discharge temperature:-20 to 70 degrees Celsius
Storage temperature:-20 to 40 degrees Celsius
Pack size (LxWxH)(220Lx 75W x 45H)mm
Weightapprox.4800 grams
Cycle life is 4-5 times more than NiMH pack, so it is much economic
Smart TipsPlease use MELASTA charger below for fully recharge battery pack.
Smart Charger (2.8A) for 36V Li-Po Battery Pack, 110-240V --- CE listed
ApplicationsE-bike,E-scooter,Wheelcharis,Power tolls,UPS,etc.
WarningPlease negotiate with MELASTA technicians to learn more Knowledge on Li-Po battery .
