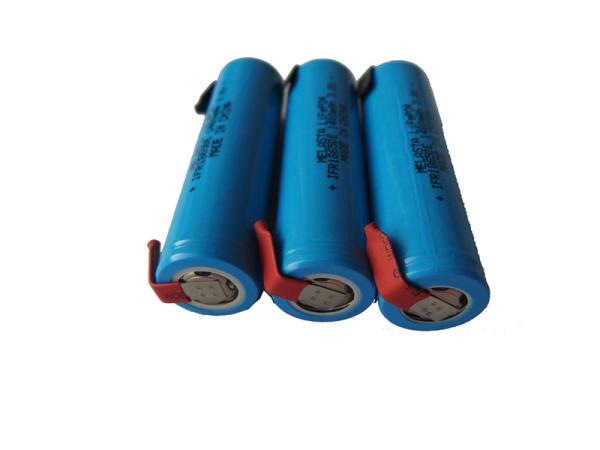

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
Specifications
Place of Origin :
China
Brand Name :
Melasta
Model Number :
IFR18650E
Certification :
CE, ROHS, KC, UN
Description

Rechargerable 1400mAh3.2VLiFePO4 Battery Pack For Solar Light

Basic Information:
Model NO.:IFR18600E
Type:Lithium Iron Phosphate Battery
Chargeable:Chargeable
Discharge Rate:Medium Discharge Rate
Shape:Cylindrical Battery
Nominal Voltage:3.2V
Usage:UPS, Electric Power, Lighting, Electric Bicycle
Export Markets:North America, Southeast Asia, Western Europe
Additional Information:
Trademark:MELASTA
Packing:Standard Export Carton
Standard:CE, ROHS, KC, UN
Origin:China
HS Code:85078010
Production Capacity:10000PCS/Day

Applications:
Lithium polymer batteries can be applied to E-bicycle, E-scooter, Electric Wheelchair, Power tools, Electric golf cart, lawn mowers and other products.

Certification:
Safety we use that certified by CE ( EMC directives ),RoHS (Directive 2006/66/EC)and KC(Korea Certificate) approval process.

No.ItemGeneral ParameterRemark
1Rated CapacityTypical1400mAhStandard discharge(0.2C5A)
after standard charge
Minimum1390mAh
2Nominal Voltage3.2VMean Operation Voltage
3Voltage at end of Discharg
Dischargr		2.0VDischarge Cut-off Voltage
4Charging at end of
Voltage		3.65V
5Internal Impedance35mΩInternal resistance measured
at AC 1KHz after 50% charge. The measure must uses the
new battreies that within one
week after shipment and
cycles no more that 5 times
6Standard chargeConstant Current 0.5C5A Constant Voltage 3.65V
0.01C cut-off		Charge time:Approx 4 hr
7Standard dischargeConstant Current 0.5C5A end Voltage 2.0V
8Fast chargeConstant Current 1C5A Constant Voltage
3.65V 0.01C5A cut-off		Charge time:Approx 2.5h
9Fast dischargeConstant Current 1C5A end Voltage 2.0V
10Maximum Continuous Charge
Current		1C5A
11Maximum Continuous Discharge
Current		5C5A
12Operation Temperature RangeCharge:0~45 degrees Celsius60±25%R.H. Bare Cell
Discharge:-10~60 degrees Celsius
13Storage Temperature RangeLess than 1 year:-20~25 degrees Celsius60±25%R.H. at the
shipment state
Less than 3 months:-20~40 degrees Celsius
14Pack DimensionHeight: 65.3mmInitial Dimension
Width: 18.2mm

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light

Rechargerable 1400mAh 3.2V LiFePO4 Battery Pack For Solar Light
