Specifications
Place of Origin :
China
Brand Name :
FUOOTECH OIL FILTRATION MACHINE
Certification :
CE, ISO 9001, CCC
Model Number :
JL-100 OIL FILTRATION MACHINE
Main function :
Remove partices & impurities from industrial fluids
Power Supply :
380V, 50HZ, 3PH (or as per request)
Main Advantage :
portable, light, low cost
Description

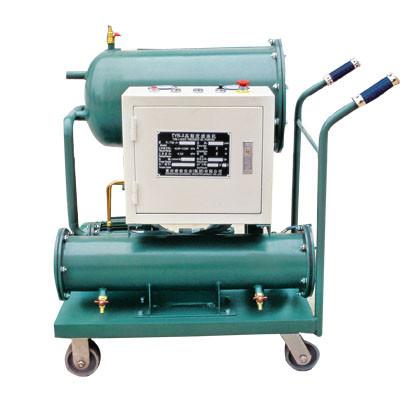

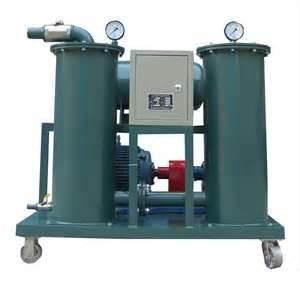

Series JL portable oil purifier mainly deal with unqualified insulating oil, turbine oil, lubricating oil etc., this machine can do precision filtering, it usually equips three-stage filters, also can equip four or five stage filters as per user's requirements . Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.

Features:

1. Use patented technology to produce. Such as high-effective separating separation tower, fuzzy control technology, dewatering and degassing very effectively.

2. It can purify the losing-efficient insulation oil and make the oil reach the new oil standard without power cut, changing the oil or using filtering papers.
3. Have the function of filling oil under vacuum condition.
4. Solve the problem of removing the acetylene.
5. The purifier has large route, strong capability of holding dirt and can be used for a long time.

6. This machine is small, light weight and convenient.
7. The ultrasonic cleaning function can be selected.
8. Have the multi-functions of centrifugal separation, molecular filter, condension de-watering and vacuum dry.
9. Have the functions of automatic burning protection and elimination foam.
10. Operate steady and the noise is specially low.

Advantage

1. This oil purifier is equipped with three-stage purification, portable, easy to operate, very low price, no need of purification paper, no contamination to the ground.

2. The product can effectively purify the tiny and fine mechanical impurity in oil, enabling it to be a prior choice of power industry, petroleum, chemical, metallurgy, mechanics and railway for oil filling, oil drawing and high precision impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.

Technical parameters

Index name Unit JL-32 JL-50 JL-80 JL-150 JL-200
Flow rate m3/h 1.9 3 6 9 12
Lift m 5 8 8 10 15
Cleanness NAS 7 6 6 6 6
Power KW 1.5 2.2 2.2 3 4
Power supplier 380V 50HZ 3Ph(As per user's option)
Weight KG 95 105 120 130 140
