higher luminous,higer power led floodlight,over 80W led tunel lamp
higher luminous,higer power led floodlight,over 80W led tunel lamp
higher luminous,higer power led floodlight,over 80W led tunel lamp
higher luminous,higer power led floodlight,over 80W led tunel lamp
higher luminous,higer power led floodlight,over 80W led tunel lamp
higher luminous,higer power led floodlight,over 80W led tunel lamp
Specifications
Place of Origin :
china
Brand Name :
gidealed
Certification :
CE ,ROSH, TUV,UL,FCC
Model Number :
GD-FLC200W-30
Description
Detailed Product Description

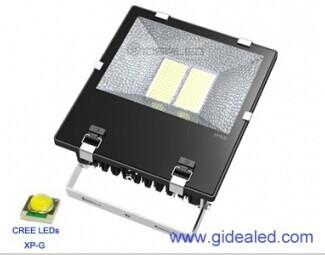

higher luminous,higer power led floodlight,over 80W led tunel lamp



 model: GD-FLC200W-30
Input Power: 200 w
Input Volt: AC90-265V
PF >0.95
Luminous Flux: 18000-20000 lm
IP Grade IP65

LED type:

CREE XP-G LEDs
Housing aluminum

Beam angle:

120 degree

Net Weight:

8.5 kg
LED Color:Warm white, Pure white, Cool white

Curve of light distribution(Ta=25℃±3℃ Unit: cd)

higher luminous,higer power led floodlight,over 80W led tunel lamp

About LED Color:

higher luminous,higer power led floodlight,over 80W led tunel lamp

Installation Instruction:

1. Cut two hole that the distance and the size like "A" in the framework. Lock the floodlight with bolt and nut;

higher luminous,higer power led floodlight,over 80W led tunel lamp

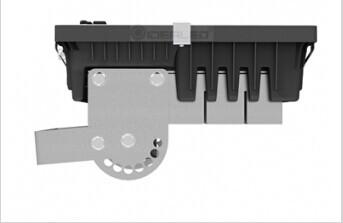

2. Rotating the light body to adjust the required cast light angle, install the hex-head screws tight;

higher luminous,higer power led floodlight,over 80W led tunel lamp

3. Put the brown lines and blue lines connect to the "L" and "N", Yellow-green wire connected to ground line;

4. Connect the power before confirm connection is correct.

Package:

higher luminous,higer power led floodlight,over 80W led tunel lamp

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotels, meeting rooms, offices , hospitals, schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.

higher luminous,higer power led floodlight,over 80W led tunel lamp
