China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel
China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel
Specifications
Place of Origin :
china
Brand Name :
gidealed
Certification :
CE ,ROSH, TUV,UL,FCC
Model Number :
GD-PL6060-36W
Input power :
36W
Input voltage :
AC90-265V
Lumious Flux :
2500-2700lm
Lumious Efficacy :
90lm/w
Led source :
Epistar SMD2835 LEd
Led color :
cool white,warm white,pure white
Housing :
Aluminum
Housing color :
Silver
Packaging :
colo box
Description

36W LED Panel Lights 600*600mm

Features:

♥ Imported LGP , the light guide light rate is 80% above
♥ Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
♥ The light even effect and no dark area, efficacy > 75 LM/W
♥ Up to 70% energy savings
♥ Isolation constant current power supply, input voltage: AC85-265V,
♥ High efficiency constant current driver can reach more than 90%,PF>0.92
♥ Unique design, Embedded installation without the accessories.
♥ Special circuit design, each group of LEDs work separately, avoiding any problem of lighting
output caused or influenced by single faulty LED.

Specifications:




China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

 model: GD-PL6060-36W
Input Power: 36 w
Input Volt: AC90-265V
PF >0.95
Luminous Flux: 2500-2700 lm
Dimension: 595mm*595mm*12mm

LED type:

Epistar SMD2835 LED
Housing aluminum

Housing Color:

Silver

Net Weight:

5.6 kg
LED Color:Warm white, Pure white, Cool white

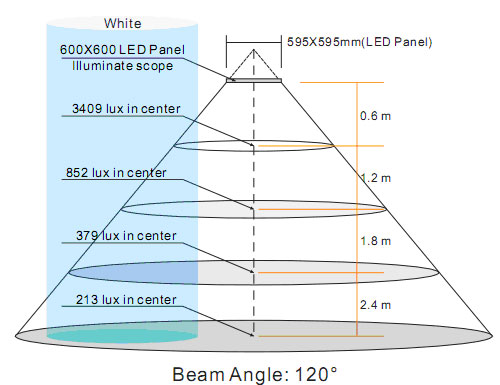

Curve of light distribution & Lux distance(Ta=25℃±3℃)

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Power connection:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Installation Instruction:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Package:

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel

Applications:

Widely used in the hotesl, meeting rooms, offices, hospitals, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.

China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel
China 600mm*600mm LED Panel Lights,36W SMD2835 Flat Panel
