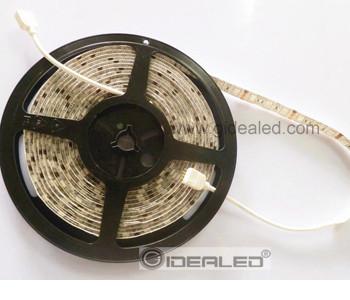

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color
SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color
Specifications
Place of Origin :
China
Brand Name :
Gidealed
Certification :
CE ,ROSH, TUV,UL,FCC
Model Number :
GD-R5050W60-12-20
Power :
14.8W/M
Voltage :
DC12V
Luminous :
10-12ml
Led source :
SMD5050
Led qty :
60leds/meter,300leds/reel
Material :
FPC
FPC color :
White,Amber,Black
CCT :
2700-6500
CRI :
over 70
Length :
5meter/reel
Life span :
35000hours
detailed place of original :
Guangzhou of guangdong province,cn
connect :
DC connector
packging :
pvc bag
Warranty time :
2years
View angle :
120 degree
Description

5050 SMD Flexible led strips,warm white amber FPC color,SMD5050 IP65 for Home

Waterproof LED strip SMD5050 cool white,5M 300leds yellow PCB

Description:

1. Available in single colors: red, green, blue, yellow, RGB, white, warm white, etc.
2. DC12V, 60leds/m, 14.8w/m, with amber, white and black background.
3. Cuttable every 3LEDs along the cutting marks, pack in reel, 5m/reel in normal,different length is available.
4. With 3M tape in the back, very simple to install at any surfaces.
5. No ultraviolet and infrared radiation, low heat-release, long lifetime for 35,000hrs.
6. No dark space and with 120° view angle.
7. CE and RoHS approved.

Specification:

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color

SMD 5050 LED Strip Dimension:

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color
Strip Connection:

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color

A. Connector of strip to strip and connector of strip to power are both available:

1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little,
it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

B. Notes for flexible LED strip mounting:

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color

1. Please make sure that the back-surface of SMD LED ribbons are clean and dry. Dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED ribbon is well-positioned, press the strip with an appropriate force.

Packaging:

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color

Application:

1) Architectural decorative lighting.
2) Archway, canopy & bridge edge lighting.
3) Amusement park, theater & aircraft cabin mood lighting.
4) Emergency hallway lighting.
5) Auditorium walkway lighting.
6) Stairway accent lighting.
7) Concealed lighting.
8) Backlighting for signage letters.
9) Channel letter lighting.
10) Cove lighting.

SMD5050 Flexible led strips for teahouse,60leds/m warm white amber FPC color
