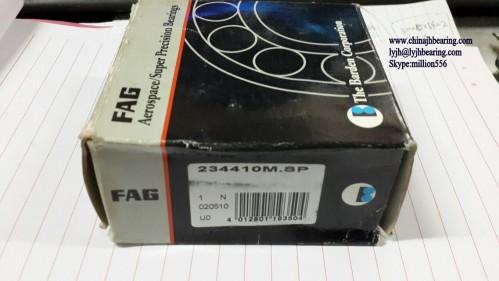

234410M.SP or 234410-M-SP Axial angular contact ball bearings 50x80x38mm,Made in Germany FAG
234410M.SP or 234410-M-SP Axial angular contact ball bearings 50x80x38mm,Made in Germany FAG
234410M.SP or 234410-M-SP Axial angular contact ball bearings 50x80x38mm,Made in Germany FAG
234410M.SP or 234410-M-SP Axial angular contact ball bearings 50x80x38mm,Made in Germany FAG
Specifications
Place of Origin :
Germany
Brand Name :
FAG
Model Number :
234410-M-SP
Certification :
ORIGINAL
Description


FAG bearings 234410M.SP or 234410-M-SP Axial angular contact ball bearings

d:50 mm D: 80mm B: 38mm

Type:

2344

Fitting on the small taper diameter

Dimension series:

10

10x5=50 MM

Dimension（dxDxb）

50x80x38mm

M

Cage material brass cage

Accuracy/Precision

SP:Special precision UP:Ultra precision

234410-M-SP High Precision roller Bearing, 234410-M-SP Machine tool main spindle bearing

234410-M-SP FAG High Speed ball Bearing, Double direction axial angular contact ball bearings are highly rigid, axially preloaded super precision bearings with restricted tolerances

to class SP for the bearing arrangements of precision spindles in machine tools. brass cage, bearing is SP quality and made in Germany

Item: 234410-M-SP FAG axial angular contact ball Bearing，FAG machine tool main spindle bearing

Type: super precision axial angular contact ball bearing

rolling: ball

Quality: SP Grade

Dimensions: 50mm x80mm x38mm /Metric

ID (inner diameter)/Bore: 50mm

OD (outer diameter): 80mm

Width/Height/thickness: 38mm

Size:50 x 80 x 38mm

Quantity: One Bearing

Dynamic load rating Cr: 260000 N

Static load rating Cor: 72000 N

Limiting Speed:

Grease Lubrication: 7000 RPM

Oil Lubrication: 9500 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required
