FAG original B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing,JHB Bearing supplied
FAG original B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing,JHB Bearing supplied
FAG original B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing,JHB Bearing supplied
FAG original B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing,JHB Bearing supplied
Specifications
Place of Origin :
Germany
Brand Name :
FAG
Model Number :
B7210-C-T-P4S-UL
Certification :
ORIGINAL
Description
B7210-C-T-P4S-UL High Precision Ball Bearing，Machine tool main spindle bearing
B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
50mm x90mm x 20mm
Made in Germany
B7210-C-T-P4S-UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany
Item: B7210CTP4SUL FAG Ball Bearing，FAG machine tool main spindle bearing
Type: FAG Angular contact Ball Bearing
ball: steel
Quality: P4 Grade
Dimensions: 50mm x90mm x 20mm /Metric
ID (inner diameter)/Bore: 50mm
OD (outer diameter): 90mm
Width/Height/thickness: 20mm
Size:50 x 90 x 20 mm
Quantity: One Bearing
Dynamic load rating Cr: 43000 N
Static load rating Cor: 31500 N
Limiting Speed:
Grease Lubrication: 16000 RPM
Oil Lubrication: 26,000 RPM
Made in Germany
The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required

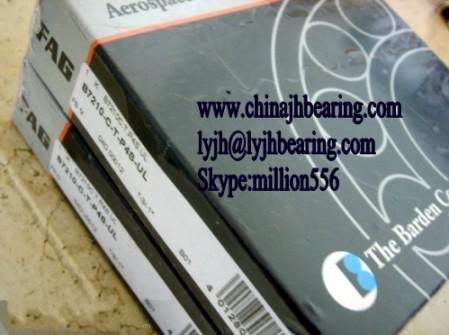

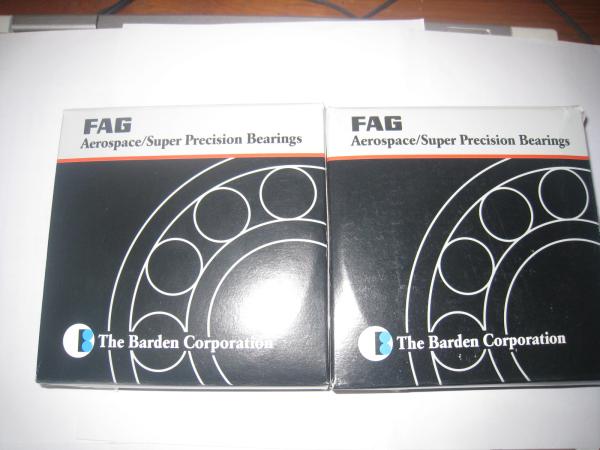

The spindle bearingB7210-C-T-P4S-ULpictures as following:

FAG original B7210.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing,JHB Bearing supplied

There are many more FAG Super precision angular contact ball bearings,

FAG bearings：
d
D
B
mm
mm
mm
B7000-E-T-P4S
10
26
8
B7001-E-T-P4S
12
28
8
B7002-E-T-P4S
15
32
9
B7003-E-T-P4S
17
35
10
B7004-E-T-P4S
20
42
12
B7005-E-T-P4S
25
47
12
B7006-E-T-P4S
30
55
13
B7007-E-T-P4S
35
62
14
B7008-E-T-P4S
40
68
15
B7009-E-T-P4S
45
75
16
B7010-E-T-P4S
50
80
16
B7011-E-T-P4S
55
90
18
B7012-E-T-P4S
60
95
18
B7013-E-T-P4S
65
100
18
B7014-E-T-P4S
70
110
20
B7015-E-T-P4S
75
115
20
B7016-E-T-P4S
80
125
22
B7017-E-T-P4S
85
130
22
B7018-E-T-P4S
90
140
24
B7019-E-T-P4S
95
145
24
B7020-E-T-P4S
100
150
24
B7021-E-T-P4S
105
160
26
B7022-E-T-P4S
110
170
28
B7024-E-T-P4S
120
180
28
B7026-E-T-P4S
130
200
33
B7028-E-T-P4S
140
210
33
B7030-E-T-P4S
150
225
35
B7032-E-T-P4S
160
240
38
B7034-E-T-P4S
170
260
42
B7036-E-T-P4S
180
280
46
B7038-E-T-P4S
190
290
46
B7040-E-T-P4S
200
310
51
B7044-E-T-P4S
220
340
56
B7048-E-T-P4S
240
360
56
FAGSuper precision bearings are made from high quality materials, through specific heat treatment, a long material fatigue life and wear resistance is achieved with the result that the bearings can be run permanently in many cases.

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required
