FAG original B7022-E-T-P4S-UM,110x170x28mm JHB Bearing supplied
FAG original B7022-E-T-P4S-UM,110x170x28mm JHB Bearing supplied
Specifications
Place of Origin :
Germany
Brand Name :
FAG
Model Number :
B7022-E-T-P4S-UM
Certification :
ORIGINAL
Description

B7022-E-T-P4S-UM Super precision bearings
FAG B7022-E-T-P4S-UM Super precision bearings

FAG B7022-E-T-P4S-UM bearing technical datasheet:
Type: Angular contact ball bearings for spindles, super precision,the dimension:110x170x28mm
Bore diameter: 110 mm
Outer diameter: 170 mm
Width: 28mm
Weight: 2 KGS/PC
Basic load rating: 110 Kn
Preload force: 2072N
B: Standard steel balls
70: Medium series
E: Contact angle 25•
T: Cage Laminated fabric, guidance on outer ring
P4S: FAG standard better than P4 to DIN 620
U: Individual bearings, suitable for any arrangement
M: Moderate Preload

Made in Germany
The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required

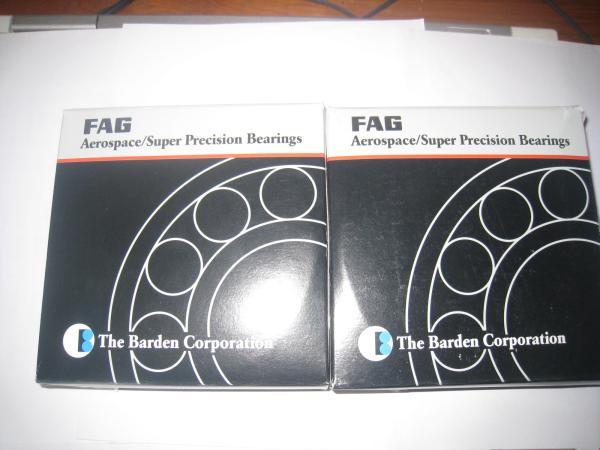

The spindle bearingB7022-E-T-P4S-UMpictures as following:

FAG original B7022-E-T-P4S-UM,110x170x28mm JHB Bearing supplied

There are many more FAG Super precision angular contact ball bearings,

FAG bearings：
d
D
B
mm
mm
mm
B7000-E-T-P4S
10
26
8
B7001-E-T-P4S
12
28
8
B7002-E-T-P4S
15
32
9
B7003-E-T-P4S
17
35
10
B7004-E-T-P4S
20
42
12
B7005-E-T-P4S
25
47
12
B7006-E-T-P4S
30
55
13
B7007-E-T-P4S
35
62
14
B7008-E-T-P4S
40
68
15
B7009-E-T-P4S
45
75
16
B7010-E-T-P4S
50
80
16
B7011-E-T-P4S
55
90
18
B7012-E-T-P4S
60
95
18
B7013-E-T-P4S
65
100
18
B7014-E-T-P4S
70
110
20
B7015-E-T-P4S
75
115
20
B7016-E-T-P4S
80
125
22
B7017-E-T-P4S
85
130
22
B7018-E-T-P4S
90
140
24
B7019-E-T-P4S
95
145
24
B7020-E-T-P4S
100
150
24
B7021-E-T-P4S
105
160
26
B7022-E-T-P4S
110
170
28
B7024-E-T-P4S
120
180
28
B7026-E-T-P4S
130
200
33
B7028-E-T-P4S
140
210
33
B7030-E-T-P4S
150
225
35
B7032-E-T-P4S
160
240
38
B7034-E-T-P4S
170
260
42
B7036-E-T-P4S
180
280
46
B7038-E-T-P4S
190
290
46
B7040-E-T-P4S
200
310
51
B7044-E-T-P4S
220
340
56
B7048-E-T-P4S
240
360
56
FAGSuper precision bearings are made from high quality materials, through specific heat treatment, a long material fatigue life and wear resistance is achieved with the result that the bearings can be run permanently in many cases.

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required

Contact us: Jean

Skype ID : million556
