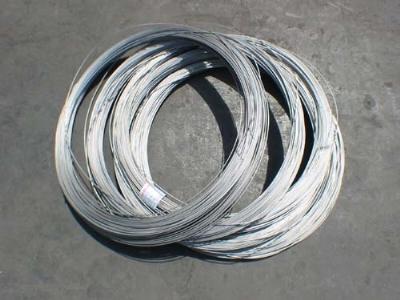

99.9% Pure Nickel Wire in Coil for Sale
1. Name:PureNickelWire
2.Grade:N02200; N02201; ERNi-1; inconel 600; inconel601; inconel800; incone l625;
Nickel 200; Nickel 201; Nickel 205; Nickel 220; Nickel 233; Nickel 270; hastelloy C276;
Ni80/Cr20(Nb) ; Ni70/Cr30(Nb) ; Ni60/Cr15; Ni35/Cr19(Nb) ;
Monel 400; Inconel 600; NW2201; UNS No2201; NW2200; Ncu30; Ncu40; CuNi44 ; CuNi6; CuNi4; CuNi2
N2; N4; N5; N6; N7;
3.Standard:ASTM B 160; ASTM B161; ASTM B162; ASTM B164-03;ASME SB-574; DIN17740 ; DIN 17752; ISO 9723;
Physical &Mechanical Properties and other parameters
Tensile Strength | 65 ksi/449 MPa |
Yield Strength | 20 ksi/138 MPa |
Melting Point | 1728K/2651ºF/1455 ºC |
Density | 8.9(20 ºC) g.cm3 |
Hardness | 335(25 ºC) HB |
Purity | 99.5%~99.9% |
4.Chemical Composition
Grade | Chief component % | Impurities max % | |||||||||||||||
Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | Pb | Bi | As | Sb | Zn | Cd | Sn | ||
N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 | 0.001 | 0.001 | 0.001 | 0.001 | 0.005 | 0.001 | 0.001 | |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 | 0.002 | 0.002 | 0.002 | 0.002 | 0.007 | 0.002 | 0.002 | |
Note: NUS N02201 (ASTM B 162) same as N4 (GB/T 2054). NUS N02200 (ASTM B 162) same as N6 (GB/T 2054). |
5.Nickel wire Tolerance
Diameter(mm) | Tolerance (mm) |
0.025 | ±0.0025 |
>0.03~0.10 | ±0.005 |
>0.10~0.40 | ±0.006 |
>0.40~0.80 | ±0.013 |
>0.80~1.2 | ±0.02 |
>1.2~2.0 | ±0.03 |
>2.0~3.2 | ±0.04 |
>3.2~4.8 | ±0.05 |
>4.8~8.0 | ±0.06 |
±0.07 | |
Note:Special demands on tolerance available. |
6. Application
—Used in electric apparatus and chemical machinery
—For vacuum coating
—For making valves grid, inner components of vacuum valves
—Components insides the electron tubes
—For making lead, supporting wire
—For battery production
—Strong base of the filter
—Components insides the electron tubes
7.Package details
First, packaging with moisture-proof paper;
Second, packaging with kraft paper;
Third, packaging with foam plastics in all side of plywood case;
Finally packing products in plywood case.
Or as your request.
8. Why choose us
1) Provide free sample
2) High response rates
3) Fast delivery
4) Professional after sale service
5) Bright and chemically cleaned surface with quality.
9.Transportation
Quick Notice:
In order to improve our accuracy of quotation and communication, please provide the following information before sending the inquiries:
1)Specific size or drawings;
2)Operation environment;
3)Purchasing quantity for each items;
4)Your special requirements.
Thanks in advance for you attention!
-----------------------------------------------------------------------------------------
