NOVO T E X 0 1 5 0 0 0 2 2 0 2
NOVO T E X 0 1 5 0 0 0 2 2 0 2
Specifications
Place of Origin :
Germany
Brand Name :
NOVO
Model Number :
T E X 0 1 5 0 0 0 2 2 0 2
Description

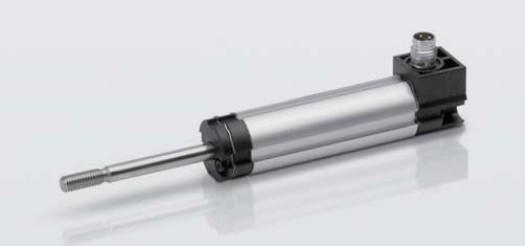

Position Transducers
Pivot head mounting
potentiometric
up to 300 mm, IP54
Series TEX
T E X 0 1 5 0 0 0 2 2 0 2

Compact design and easy to
assemble via pivot heads characterize
this inexpensive
transducer. This transducer is
suitable for various industry
applications. By the simplicity
of the measuring system -
passive and absolute - the
transducer is largely insensitive
to electrical interference.
The measuring value remains
despite power failure.
The electrical connection can
be made via a radial plug connector,
a radial or axial cable.
Transducers with and without
restoring spring and mounting
clamp, central thread or flange
plates see separate data
sheets TEX.
Special features
* compact dimensions
* protection class IP54
* mountable over back-lash
free pivot heads with a large
angle of free movement (up to
±12,5°)
* very long life (depending on
application) up to 100 million
movements
* resolution better than 0.01
mm
* outstanding linearity up to
±0.05 %
* variable mechanical customer
interfaces
* cable or connector version
available
* heavy-duty version IP67 see
