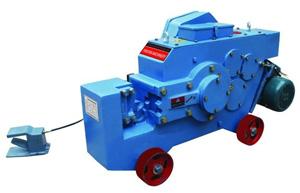

rebar cutter machine GQ42 from china
rebar cutter machine GQ42 from china
Specifications
Place of Origin :
China
Brand Name :
chinacoal
Certification :
ISO9001,CE
Description

Product introduction

usage:

Cut all steel material, like ordinary carbon steel, cold & hot round steel, screwed thread

steel, flat/angle/square/scrap/deformed steel

Scope of application

1.Applicable site:prefabrication factories, construction sites,rebar yard, steel distribution

center

2.Objects: wire rod, round steel, screwed steel, etc

Rebar Shears,Metal Shear Machine(GQ42) is a kind of highly effective equipment,newly designed and produced by our

company according to market requirements.

rebar shears features:

1) Reinforced fuselage.small size,compact structure,solid fuselage.With scrollable

casters it can be moved easily and flexibility.

2) Good lubricating properties.It adopts full close structure and lubricates by using

gears splash.It can operate more than three months continually if it is added oil(8-10kg) at a time.

3) Little power loss. For lubrication conditions improving,gear-side uses rolling bearing,the resistance is small,compared with the similar cutting

machine with load power can reduce by one third.

4) Long service.It adopts the high steel knife block,connecting rod,high-speed international standard motor, its quality is more stable and it will last longer.

Main parameter

Cut off the bar diameter

Ordinary Carbon Steel

Φ4to 42mm

Rebar grade II

Φ4 to 32mm

Cut of the maximum size of flat steel

70x15mm

Cut of the maximum size of square steel

32x32mm

Cut of the maximum size of angle steel

50x50mm

Cutting times/min

32times/min

Motor power

3kw

Voltage

380V

Motor speed

2880r/min

Weight

430KG

Dimensions

1200x480x740(mm)
