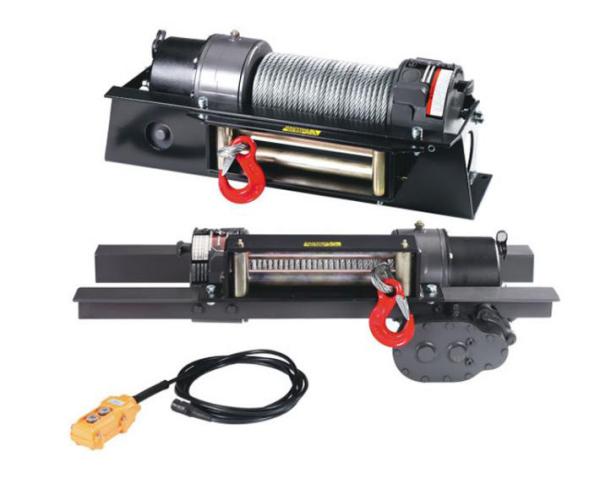

16,800LB 12V Electric Capstan Winches for 4X4 Off-Road Vehicle
16,800LB 12V Electric Capstan Winches for 4X4 Off-Road Vehicle
Specifications
Place of Origin :
China
Brand Name :
chinacoal
Certification :
ISO9001,CE
Description

1. Three stage planetary gear system provides fast line speed

2. 12 volt permanent magnet motors draws less current

3. Automative load-holding break for safety

4. The clutch allows you to release winch rope by hand

5. Aircraft grade wire rope,or synthetic rope is optional

6. Remote switch with9.8ftlead, or wireless remote control at your request

7. Our products are of well-designed,beautiful appearance and easy to install

Rated line pull

16800lbs(7620kgs) single line

Motor

4.4kw/6.0hp, series wound

Gear reduction ratio

358:1

Gear train

3 stage Planetary

Cable(Dia×L)

Φ10.5mm×26m

Control

Remote switch,9.8ft(3.0m)lead

Drum size(Dia×L)

Φ 3.5"(88mm)×8.7"(221.5mm)

Clutch

Sliding Ring Gear

Breaking action

Automatic In-The-Drum

Overall dimensions(L×W×H)

572mm×216mm×255mm

Mounting bolt pattern

253mm*114mm, Φ12

Weight

N.W.50.4kg G.W.51.4kg

Packing size

655mm×235mm×410mm1PC/CTN

Product tags

atv winch mounts

,

scooter carb

,

stand up gas scooter parts
