22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 high brightness ou
22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 high brightness ou
Specifications
Place of Origin :
CHINA
Brand Name :
ARISE LED
Certification :
ISO CE UL CCC FCE ROHS
Model Number :
22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 Outdoor Fixed LED
Description

22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 Outdoor Fixed LED Display,P6.67 high brightness outdoor led video wall display

Arise Technology Co., Ltd. One-stop LED display manufacturere
Website: www.ariseled.com
Skype: ariseled;
Email: info@ariseled.com;
Mobile/WhatsApp/WeChat: 008613620209526
Https://www.facebook.com/Arise-Technology-Co-Ltd-388635868143638/
22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 high brightness ou

Specification:

Pixel configuration

1R1G1B SMD3535

Pixel Pitch

6.67mm

Module resolution (WxH)

48x48

Module size (mm)

320x320

Weight per module (kg)

2

Max power consumption

85w

Module QTY Per Cabinet

2x2

Cabinet Resolution (WxH)

96*96

Cabinet Size (WxH)

640x640

Area Per cabinet (sqm)

0.4096

Cabinet weight (KG)

13.5kg

Pixel density (dot/sqm)

22478

Cabinet flatness

<0.2

Cabinet Materials

Diacast Aluminium

Brightness Calibration each dot

yes

Whith balance brightness (cd/sqm)

>1200

Color temperature

3200-9330k (adjustable)

View angle

Horizontal 110℃,Vertical 110℃

Brightness Unifomity

>98%

Max. contrast

4000:01:00

Max power consumption (sqm)

400W/SQM

Average power consumption (sqm)

200W/SQM

Input Voltage (VAC)

110±15% or 220 ±15%

Driving mode

1/ 11 scan

Frame rate(Hz)

50 to 60

refresh Frequency (Hz)

>800

Best view distance

18m-100m

Lifetime

100000 hours

working temperature

(-20 to + 65)

Working humidity

10% to 90%

Waterproof Rate

IP65

22478 pixel/㎡ P6.67 Outdoor SMD3535 Advertising Media LED Display,P6.67 high brightness ou

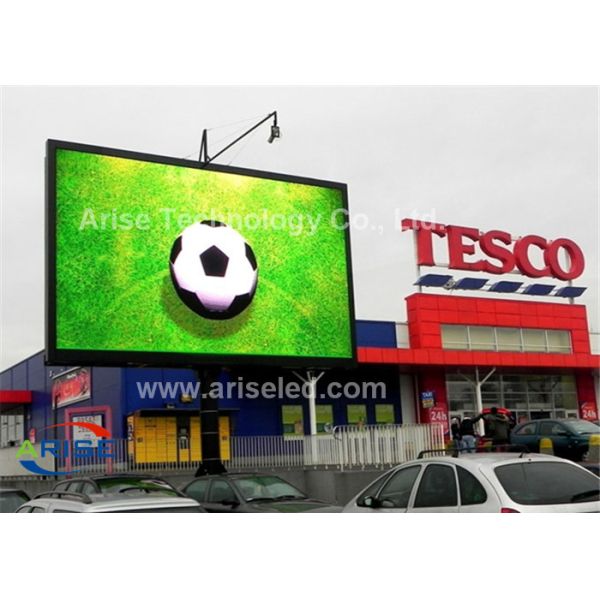

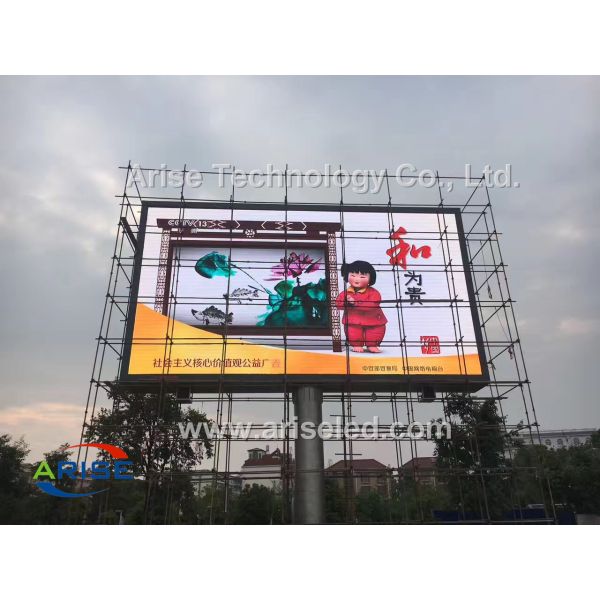

Applications:The LED display is widely used in public places, advertising, cityroad network, city parking lot, railway station and metro as well as other transportation guidance systems. and some hall.

Arise Technology Co., Ltd. One-stop LED display manufacturere
Website: www.ariseled.com
Skype: ariseled;
Email: info@ariseled.com;
Mobile/WhatsApp/WeChat: 008613620209526
Https://www.facebook.com/Arise-Technology-Co-Ltd-388635868143638/
