Custom switching power ferrite 9v ac 12v dc transformer for power supply china manufacturer

Certifications:

1.We have abtained SGS Audit Supplier in China andVDE,UL,CE,ROHS,ISO9000

Approal.We guarantee quality is the first:

High Frequency Transformer modes:

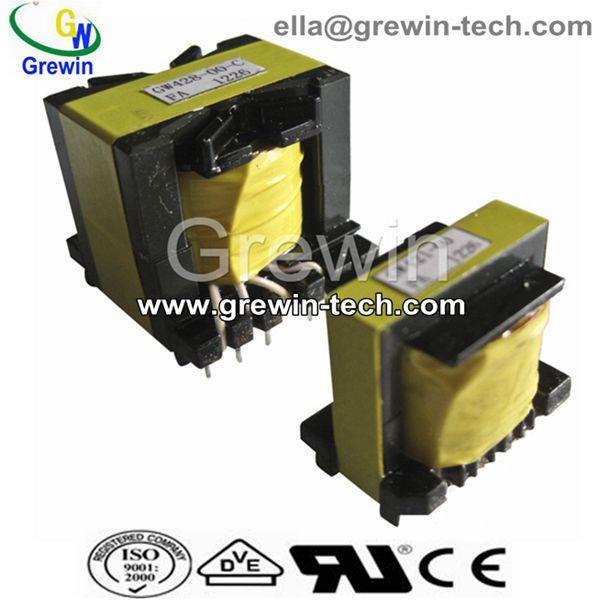

1.The dimension of the PQ transformers:

1).Features:

Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm

structure,can fine-tune the inductance, etc., are widely used in fax

machines, PBX.

Operating frequency: higher than 200kHz
High magnetic flux and low loss magnetic materials
With low leakage inductance and high efficiency .

3).Applications:

PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and

instruments.

UL insulation system for Class B (130), F (155), H (180)

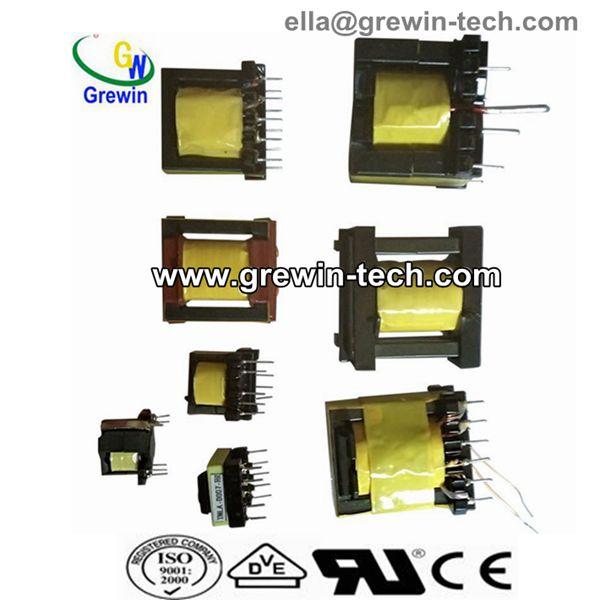

4). Can make other customized Ferrite transformers:

Power range: core type using N67 grade material
<5: RM4, P11/7, EF12.6 and U10
5 to 10: E (F) 16, RM5 and P14/8
10 to 20: RM6, E (F) 20, P18, U15 and EFD15
20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20
50 to 100: ETD29, ETD34, RM12, P30 and EFD25
100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30
200 to 500: ETD44, ETD49 and E55
>500: ETD54, ETD59 and E65

6)Ferrite coilformers Series:

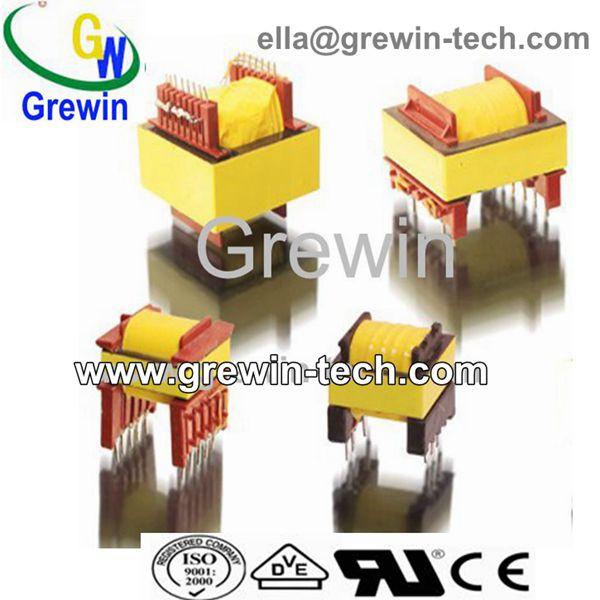

2.E COILFORMERS:

3.RM COILFORMERS:

4.NOTE:Other Series are E, EFD, EC, ETD, EP, ER, PQ, RM cores.We can customized

all sereis base on customer's requirements.

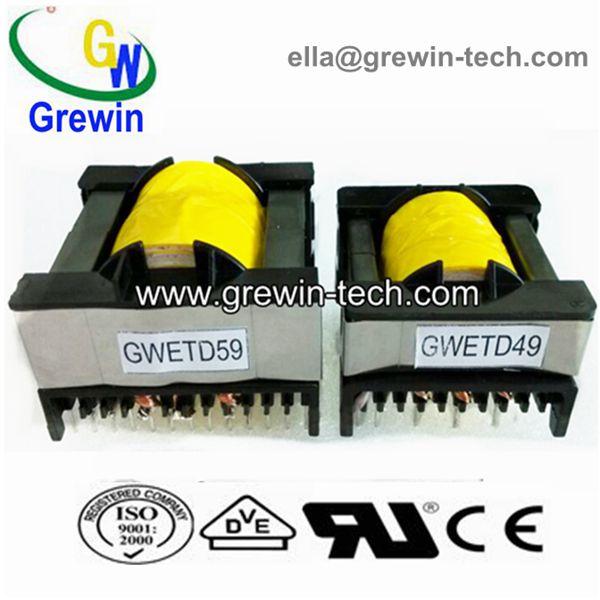

Vertical versions available:ETD29, ETD34,ETD39,ETD44,ETD49,ETD54,ETD59 Transformer:

220v high frequency switching charger transformer manufacturer

5.ER9.5 ER11 ER14.5 TRANSFORMER:

6.EFD15 EFD20 EFD25 EFD30 Transformer:

How to design Transformer ?

Transformer capacity is rated in Volt-Amps (VA) which is generally the same as wattage (Watts).

Most loads are labeled withtheir proper operational voltage (Volts), current (Amps),

frequency (Hz), and wattage (Watts or VA). When you need to design a transformer,

we must know the mainly below parameters to be customized:GREWIN's Custom

Transformers ,plz kindly check attached file:

GREWIN's Custom Transformers:

WHY CHOOSE US?

1.Equipments:

. Automatic Winding Machine
. Semi-automatic Winding Machine
. Toroidal Winding Machine
. Insert Lamination Machine
. Wave Soldering Machine
. Plastic Termal Ultraviolet Machine
. Domino Ink Jet Printing Machine

Transformer Multitester for High & Low Frequency
Layer Insulation Withstand Voltage Tester

2.The following picture showed you about GREWIN and production line and

electronic exhibition:

Tianjin Grewin Technology Co.,ltd. has always placed great emphasis on our core

business philosophy "Quality and Honesty First ". Due to continuous innovative research

and development, technical standards and efficient.A professional leading and a main

exporter of a wide variety of electronic components in China for many Years.

3.Acceptance of the Conditions:

All orders accepted by GREWIN are subject to the general sale conditions herein set forth,

which are understood and accepted by the Purchaser when passing the order and/or upon

receipt of GREWIN invoices. Other conditions as well as any verbal agreement are considered valid only if specifically confirmed by GREWIN in writing.

4.Payment terms:

(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before

delivery.

(2)By irrevocable L/C at sight, to be issued immediately against confirmed order.

(3)Payment by T/T, if order amount is less than USD 20,000.

5.Sample terms:

(1)Samples will be sent subject to advance payment to cover the courier charge and samples charge.

(2)You are pleased to instruct your courier company to pick up samples in our TianJin, China office at your expenses. For pick-up details, please advise your courier company to contact us.

(3)Delivery time 3-10 working days.
