300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus
300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus
Specifications
Description

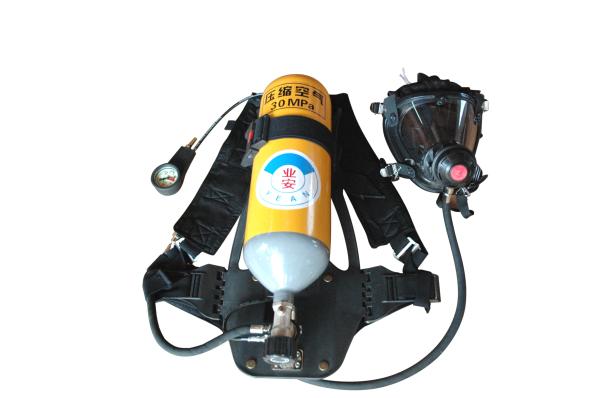

RHZK 6/30 300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus

1.Feature of RHZK6/30 300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus

The spherical silica materials mask with the most advanced international technol logy

the face piece has a wide and bright field of vision,good air

tightness and can join and separate with the supply valve

quickly.the supply valve has a big ventilation flow capacity,

breathe easily,safe and reliable residual air alarming equipment,

which is audible evening noisy place.

High strength but low weight carbon fibre composite bottle,

Well-designed and comfortable carbon firbre backboard,with

Adjustable and uick-fastened waist and shoulder belt.

2.Technical parameter of RHZK6/30 300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus

Service time60min
Volume of air bottle6.8L
Max oxygen storage2040L
Oxygen supply ration1.4~1.61L/min
Automatic oxygen supply ration>30L/min
Manual oxygen supply ration>80L/min
Rated working pressure30MP
Manual oxygen supply pressure50~200Pa
Alarm pressure5±0.5MPa,5±0.5MPa
Size

710mm×290mm×430mm

Gross weight12kg

3.Application of RHZK6/30 300Bar Steel Cylinder Self-contained Breathing Apparatus / Self-rescue Breathing Apparatus / Mining Breathing Apparatus

It is widely used in firefighting,chemical industry,shipbuilding industry,petroleum industry,metal lurgial industry,gasworks,petroleum storage,laboratory,mine,etc.it helps emergency squad to work safely in anoxic,smoky or poisonous environments.It can provide effetely respiratory protecting from toxic gases for fire-fighter,life-saver,rescue and operator who working in thick smoke,steam,and oxygen deficiency hazardous atmosphere.
Product Inspection Standard:Requirements of theInternational Code for Fire Safety Systems and GA124-2004.EC Type Examination Certificate No.54 775 - 08 Lux.

Model

Working pressure

(MPa)

Volume

(L)

Air Deposit

(L)

Using Time

(min)

Alarm Pressure

(MPa)

Weight

(kg)

Packing

(mm)

RHZK5/30

30

5

1500

40-50

4-6

≤16

710*290*430

RHZK6/30

30

6

1800

50-60

4-6

≤18

710*290*430

RHZK6.8/30

30

6.8

2040

50-60

4-6

≤12

710*290*430

RHZK9/30

30

9

2700

80-90

4-6

≤16

710*290*430
