4m3/h Marine Oily Water Separator/15ppm Bilge Water Oil Separator
4m3/h Marine Oily Water Separator/15ppm Bilge Water Oil Separator
Specifications
Place of Origin :
China
Certification :
CCS ,EC.GL,ABS
Description

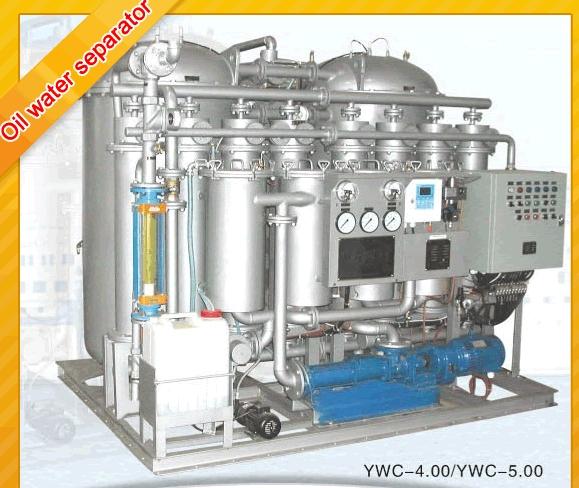

YWC Series 15ppm Bilge Oil Water Separator

1. Introduction
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water 15ppm.
YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT. The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels


2. Main parameters
(1)capacity: From 0.25m3/h to 5m3/h
(2) Oil content in the effluent water 15 ppm
(3) Meet the standard of IMO MEPC. 107(49)
(4) Heating mode: Steam /electric heating
(5) CCS, EC certificate
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) there are 9 types with different capacities

3,Specification

TypeYWC-0.25YWC-0.50YWC-1.00YWC-1.50YWC-2.00YWC-2.50YWC-3.00YWC-4.00YWC-5.00
Rating Capacity (m3/h)0.250.501.001.502.002.503.004.005.00
Power of Pump(kw)0.370.550.751.101.101.501.502.202.20
Electric heater power (kw)33optionoptionoptionoptionoptionoptionoption
Steam heater (m2/kw)1/301/452/602/753/904/1205/150
15ppm Bilge AlarmIncludedIncludedIncludedIncludedIncludedIncludedIncludedIncludedIncluded
Base(channel steel) (mm)#5 1000*600#6 1100*690#6 1050*1080#6 1100*1130#8 1900*1120#8 1900*1120#8 1700*1500#8 2280*1700#8 2590*2000
Height(mm)125014601600165017001900190019001900
Dry/Wet weight(kg)300/450600/800800/8601060/18101260/22601500/28001800/32002100/39002500/4600
Applicable ship vessel<1000DWT1000-5000DWT5000-10KDWT10KDWT-30KDWT30KDWT-50KDWT50KDWT-100KDWT100KDWT-200KDWT100KDWT-300KDWT>300KDWT
