5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type
5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type
5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type
5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type
Specifications
Place of Origin :
China
Brand Name :
DX
Model Number :
DX
Certification :
ROHS/ISO9001:2008
Description

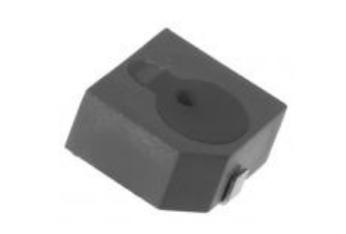

5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer

DX-1370 Type

contact with us: yxl(at)duoxin(dot)com

SPECIFICATION

Magnetic Buzzer SMD

1

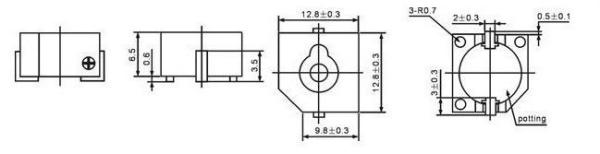

Dimension

12.8*12.8*7.1

2

Net Weight

Approx 2.0g

3

Rated Voltage

3 Vo-p

4

Operating Voltage

2.0～5.0 Vo-p

5

Rated Current

Max.30mA

6

Sound Output

Min. 85dB at 10cm

7

Coil Resistance

47±3Ω

8

Resonant Frequency

2400±400Hz

9

Operating Temperature

-20℃～+70℃

10

Store Temperature

-30℃～+80℃

5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type

5V Magnetic transducer 12.8*12.8*7.1 SMD buzzer DX-1370 Type
