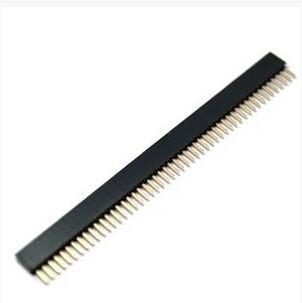

1.27mm 2.0mm 2.54mm single row female header connector DIP type
1.27mm 2.0mm 2.54mm single row female header connector DIP type
1.27mm 2.0mm 2.54mm single row female header connector DIP type
1.27mm 2.0mm 2.54mm single row female header connector DIP type
Specifications
Place of Origin :
China
Brand Name :
KZ
Insulator material :
PA6T/PA9T/LCP/etc
Description

1.27mm 2.0mm 2.54mm single row female header connector DIP type

Product details
Pitch: 2.54mm
Gender: Socket
Number of contacts: 04-80 pin
Mount type: Though hole
Number of Rows: Single row
Elevated: No
Orientation: Straight
Square Pin Diameter: 0.75mm
Insulator colour: Black

Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40℃ to +105℃
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260℃ for 10 seconds
Wave: 230℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds
PBT(OPTION)
Manual Solder: 350℃ for 3-5 seconds

(Not suitable for HI-TEMP process)
WAVE:230℃ for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260℃ for 10 seconds
Wave: 250℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds

Drawing

1.27mm 2.0mm 2.54mm single row female header connector DIP type
