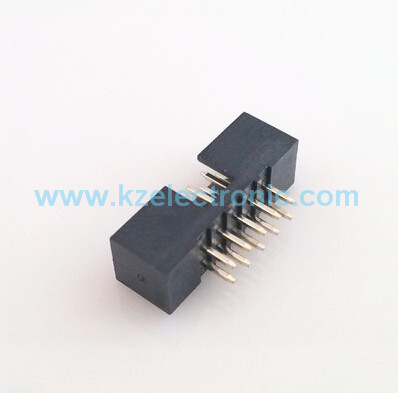

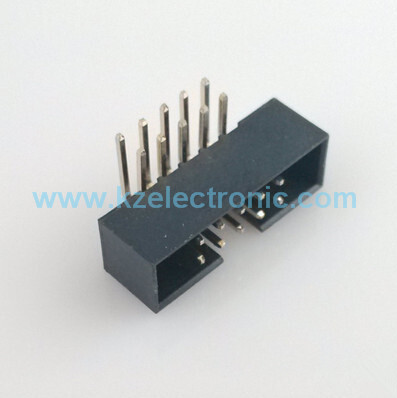

Pitch 2.0mm box header connector, male header for PCB
Pitch 2.0mm box header connector, male header for PCB
Pitch 2.0mm box header connector, male header for PCB
Pitch 2.0mm box header connector, male header for PCB
Specifications
Model Number :
KZBH-2.0
Insulator material :
PA6T/PA9T/LCP/etc
Pins :
Different pins are available
Description

Pitch 2.0mm box header connector, male header for PCB

Product details
Pitch: 2.00mm
Gender: Header
Number of contacts: 06-68 pin
Mount type: Through hole
Number of Rows: Dual row
Elevated: No
Orientation: Right angle
Square Pin Diameter: 0.50mm
Insulator colour: Black

Current Rating: 2 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PBT(OPTION)
Manual Solder: 350°C for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230°C for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

Drawing for reference

Pitch 2.0mm box header connector, male header for PCB
