Right angle 2.54mm single row male and femlae pin header connector
Right angle 2.54mm single row male and femlae pin header connector
Specifications
Place of Origin :
China
Brand Name :
Kezo
Certification :
RoHS compliance
Model Number :
KZPH-2.54-90
Insulator material :
PA6T/PA9T/LCP/etc
Description

Right angle 2.54mm single row male and femlae pin header connector

Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PBT(OPTION)
Manual Solder: 350°C for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230°C for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

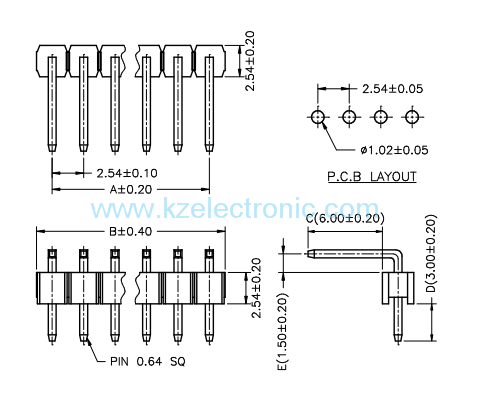

Drawing

Right angle 2.54mm single row male and femlae pin header connector
