Pet bottle blowing machine PM1000B
Pet bottle blowing machine PM1000B
Specifications
Place of Origin :
Dalian China
Brand Name :
Maccsy
Certification :
ISO CE
Model Number :
PM1000B
Sort :
Pet bottle blowing machine PM1000B
Description

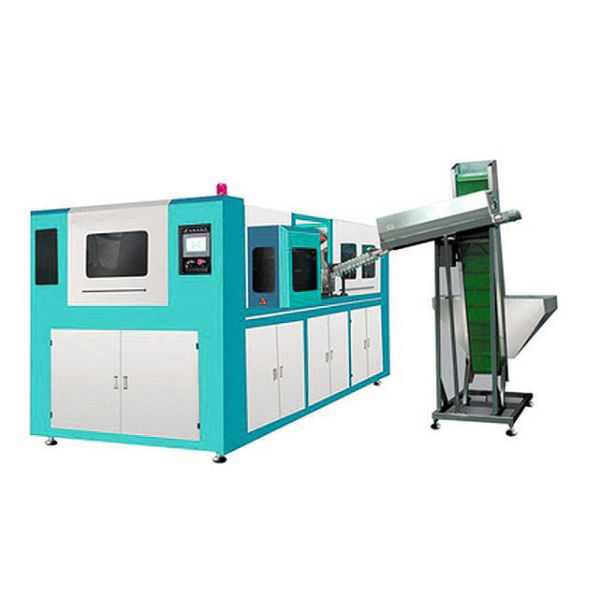

Photo of Pet bottle blowing machine PM1000B

Pet bottle blowing machine PM1000B

Introduction

1.Automatic perform input and ready bottle output system.
2.Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
3.Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
6.Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.

Technical parameters

Model PM1000B2 PM1000B4 PM1000B6
Clamping force 30t 40t 50t
Clamping stoke 125mm 125mm 125mm
Max stretching stroke 400mm 400mm 400mm
bottom moving stroke 0-50mmm 0-50mmm 0-50mmm
No. of cavities 2 4 4
Max mould thickness 300mm 300mm 300mm
Space between tie bars 80mm 100mm 120mm
Min air compressor 1.6m3/min, 3mpa 2.4m3/min, 3Mpa 3.6m3/min,3Mpa
Min air compressor 1.2m3/min,1Mpa 1.6m3/min, 1Mpa 1.6m3/min,1Mpa
