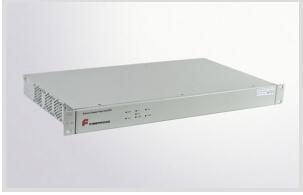

100G SOA o-band 1260~1340 Power up to 10dBm 220VAC or 48VDC dual power supply
100G SOA o-band 1260~1340 Power up to 10dBm 220VAC or 48VDC dual power supply
100G SOA o-band 1260~1340 Power up to 10dBm 220VAC or 48VDC dual power supply
100G SOA o-band 1260~1340 Power up to 10dBm 220VAC or 48VDC dual power supply
Specifications
Place of Origin :
ShenZhen China
Brand Name :
Fiberroad
Model Number :
FR-6000S-SOA1310-1
Certification :
CE , ISO9000 , SGS , FCC , LVD
Description

100G SOA

Fiberroad Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the10G/40G/100G system, suit for system design conveniently. Products are divided into 2 * 2,4 * 4 and 8 * 8 three kinds, respectively, to achieve 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.

Key Features

  • O-band, 1260~1340;
  • Power up to 10dBm;
  • 3 work modes, ACC, APC and AGC,for constant pump current, output power or gain are selectable;
  • DB9 port for RS232 communication and RJ45 port for SNMP function
  • 220VAC or -48VDC dual power supply, optional.

Specification

100G systemsOBA（Example）
ParametersMinTypMaxUnitsRemark
Operating wavelength129013101330nm
Port8port8in put 8 out put
input power-25-10dBm
Out put power-8-2dBmAPC
Polarization dependent gain2dB
Bias current300400mASingle
Gain flatness2dB
Noise figure7.58dBin put=-20dBm
Uniformity1dB
Stability0.5dB
Working temperature055℃
Storage temperature-4085℃
Power40W
Control modeAPC
Operating Voltage-48V DC or 220VACV
Size1U、19 inch
ManagementSNMP
Rate10Gbps/40Gbps/100Gbps

Ordering information

P/NDescription
FR-6000S-SOA1310-11310nm SOA amplifier 1CH
FR-6000S-SOA1310-21310nm SOA amplifier 2CH
FR-6000S-SOA1310-41310nm SOA amplifier 4CH
FR-6000S-SOA1310-81310nm SOA amplifier 8CH
