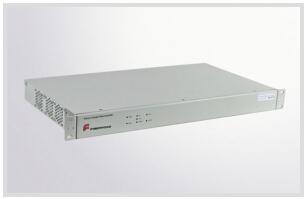

DWDM EDFA(Erbium-Doped Fiber Amplifier)

FR6000-EDFA is a family of gain-flattened unidirectional EDFA. Its working wavelength is normally C-Band (1529~1561nm), special working wavelength range can be discussed with Fiberroad. Because of adopting optimal design of optical path, it can amplify the C-Band signal with or w/o middle stage access (MSA), at fixed gain or variable gain, which brings great flexibility for the network application. Besides, for adopting high quality GFF and reasonable design of optical path, it achieves very good gain flatness and very low noise figure. Optical supervisory channel (OSC) is optional function integrated in the rack. It can be dropped /added outside, or bypass internal, or amplified by OSC OEO module. The EDFA has the world's top class pump laser and erbium-doped optical fiber. Perfect AGC, APC and ACC control, excellent design in ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. The laser will switch off automatically if optical power is missing.

Key Features

  • C-Band (No Middle Stage)
  • Excellent gain flatness
  • Wide operating wavelength range
  • Perfect network control interface
  • C-Band (Multi-function With Middle stage)
  • Mid-stage access for DCM or OADM or DCM module
  • Excellent gain flatness
  • Gain tunable
  • Low NF
  • Transient response control
  • ASE automatic compensation
  • AGC/APC/ACC Optional
  • Perfect network monitoring interface

Specification

C-Band (No Middle Stage)

ParameterMinTypMaxUnit
Operating Wavelength16Channel15461561nm
32Channel15351562
40Channel15281565
Input PowerOBA-14-5dBm
OPA-38-5
Output Power23dBm
Gain1433dB
Noise FigureOBA5.0dB
OPA4.5
Gain Flatness1.0dB

C-Band (Multi-function With Middle stage)

ParameterConditionMinTypMaxUnit

Wavelength Range

15281565nm

Number of channels

14048
Input power per channel-29-14.5dBm/ch

Total Input power

-296dBm

Saturation Output Power

12022dBm

Dynamic Gain Range

1630dB

Nominal tilt

0dB

Mid stage loss range

015dB

Gain ripple

+/-0.75dB

Noise Figure

G=28dB5.9dB
G≥25dB6.6dB
G≥22dB7.3dB
G≥19dB8.8dB
G≥16dB10.8dB

First stage gain(Optical input to MSA out)

G=28dB,MSL=7.5dB,Tilt=0dB19.6
G=28dB,MSL=5dB,Tilt=0dB17.1
G=22dB,MSL=7.5dB,Tilt=0dB12.6
G=22dB,MSL=5dB,Tilt=0dB10.6
G=16dB,MSL=7.5dB,Tilt=0dB6.5

PMD

0.5ps

PDG

0.5dB

Optical Isolation at the output of first stage

30dB

Optical Isolation at the output port

30dB

Return loss of the input port

40dB
Operating Temperature-565℃

Operating Humidity

595%

Storage Temperature

-4085℃
VoltageAC:220V/DC:-48V OptionalV

Dimension

(W×L×H) 482.6×245×43.6mm
