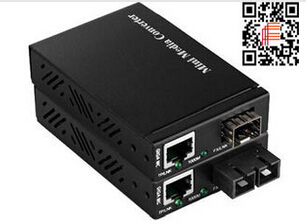

Standalone Managed 10G Fiber Media Converter XFP Loopback Test Function

• Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Key Features

• • Support Jumbo Frame
  • Support web management
  • Transparent Transport and very low delay
  • Support ITUT prescribed DWDM/CWDM wavelength
  • Support Loopback test function
  • Support hot plugging
  • Full State Led display
  • Easy installation

• Specification

  Transmission mode	Technical Indexes
  Transmission Speed	10Gb/s
  Protocols	IEEE802.3an(10Gbase-T) IEEE802.3ae(10Gbase-SR/LR/ER/ZR)
  Access Type	10G LAN
  Interface Type	RJ45 To/From SFP+ RJ45 To/From XFP
  Transmission Distance	SFP+ module: Up to 80Km XFP module:Up to 80Km 10Gbase-T: 100meters Cat .6a cable
  Maximum Packet Forwarding Rate	14,880,950/S
  Power supply specifications and dimensions	DC:5V 4A
  	power consumption≤6W(without module)
  	172mm * 105mm * 32mm

  Ordering information

  P/N	Description	Remark
  FR-MC52M-SFP+	10G Standalone Managed Media Converter	SFP+ to RJ45
  FR-MC52M-XFP	10G Standalone Managed Media Converter	XFP to RJ45
