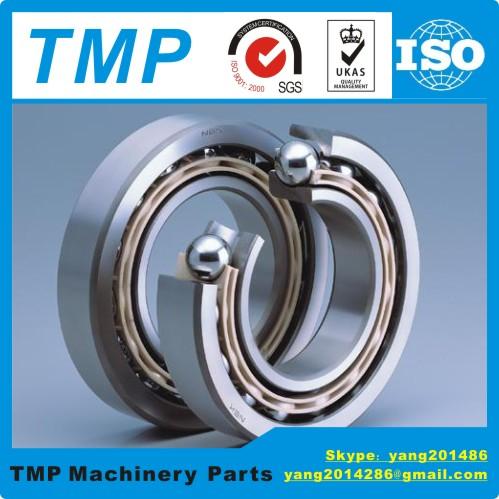

7210C/AC DBL P4 Angular Contact Ball Bearing (50x90x20mm) Machine Tool Bearing INA type High precision Motor Bearing
7210C/AC DBL P4 Angular Contact Ball Bearing (50x90x20mm) Machine Tool Bearing INA type High precision Motor Bearing
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
7210C
Certification :
ISO9001:2008
Description

7210C/AC DBL P4 Angular Contact Ball Bearing (50x90x20mm)

Machine Tool Bearing INA type High precision Motor Bearing

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-7210
Inner ring(mm)-50
Outer ring(mm)-90
Width(mm)-20
Weight(Kg)-0.457
Materials-Chrome steel/GCR15
Precision grade-P4
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TYN-PA;TR-PF
Combination of mark-SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Preloaded mark-EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded
B . 7210 Angular Contact Ball Bearing Specification Sheet
Model NumberDimensionsα=15°α=25°Material
(Cage )		Weight (kg)
Approx
Limiting speedLimiting speed
dDBBasic load
rating		LubricationBasic load
rating		Lubrication
Cr CorGrease OilCr CorGrease Oil
721050902043.3 40.614000 2300041.3 38.713000 21000PA/PF0.457

Categories:Angular Contact Ball Bearings
Ceramic Ball Bearings
Related Search:7210C DBL P4,7210AC DBL P4,7210C Angular Contact Ball Bearing,7210C Spindle bearing,50x90x20mm bearing
C . 72 series Angular Contact Ball Bearing Details

Product

Features

Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can

withstand high radial-axial loads and reach high speeds. They are asymmetrical for

manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually

mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically,

the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe,

bearings may have ceramic balls creating a hybrid bearing.

Series

Introduction

ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings

Series

Model No.

7200AC/C 7201AC/C 7202AC/C 7203AC/C 7204AC/C 7205AC/C 7206AC/C 7207AC/C 7208AC/C

7209AC/C 7210AC/C 7211AC/C 7212AC/C 7213AC/C 7214AC/C 7215AC/C 7216AC/C 7217AC/C

7218AC/C 7219AC/C 7220AC/C 7221AC/C 7222AC/C 7224AC/C 7226AC/C 7228AC/C 7230AC/C

7232AC/C 7234AC/C 7236AC/C 7238AC/C 7240AC/C 7244AC/C

ApplicationsAngular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
