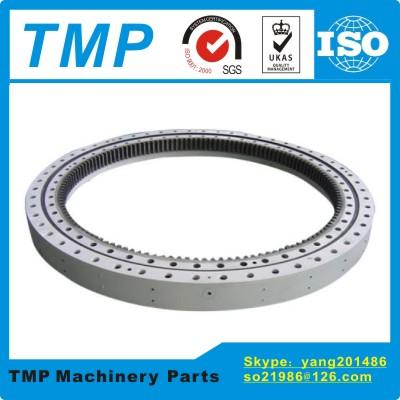

VLA200844N Slewing Bearings (734x950.1x56mm) TMP slew bearing Excavator bearings
VLA200844N Slewing Bearings (734x950.1x56mm) TMP slew bearing Excavator bearings
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
VLA200844N
Certification :
ISO9001:2008
Description
VLA200844N Slewing Bearings (734x950.1x56mm) TMP slew bearing Excavator bearings
A . Slewing Bearings Parameters
Brand-TMP
Model number-VLA200844N
Inner ring(mm)-734
Outer ring(mm)-950.1
Width(mm)-56
Weight(Kg)-65.5
Materials-GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo
Series-VLA20
Lubrication type-Grease lubrication
Rolling elements-Ball
Load direction-Multi-load
Structure-Four Point Contact Ball,External Gear Teeth
B . VLA200844N Slewing Bearings Specification Sheet
DesignationMass
(kg)		Dimensions (mm)Fixing holesFixing
screws
Fr kN		Gear
teeth		Tooth forceBasic load
ratings
(axial)		Basic load
ratings
(radial)
DadiDidaWidthLanaLinid0mzFz norm
kN		Fz max
kN		dyn. Ca
kN		stat. C0a
kN		dyn. Cr
kN		stat. C0r
kN
VLA200844N65.5950.1734845.5842.556885187621874.3936811728.342222600145224

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly

cost effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment

loads. It is therefore possible in many cases to replace bearing arrangements comprising a

combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:

Four point contact slewing bearings and crossed roller slewing bearings.

Four point contact bearing, light series 20, external gear teeth,selectable internal clearance,

sealed, lubrication nipple on circumference of ring without teeth

VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N;
VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N;
VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094;
VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N;
VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N;
VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094;
VSA250755N,VSA250855N,VSA250955N,VSA251055N;
VSI250755N,VSI250855N,VSI250955N,VSI251055N;
VSU250755,VSU250855,VSU250955,VSU251055;
VA140188V,VA160235N,VA160302N,VA250309N;
VI160288N,VI140326V,VI160420N;
VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680;

Product Application:

Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine,wind turbines etc.
