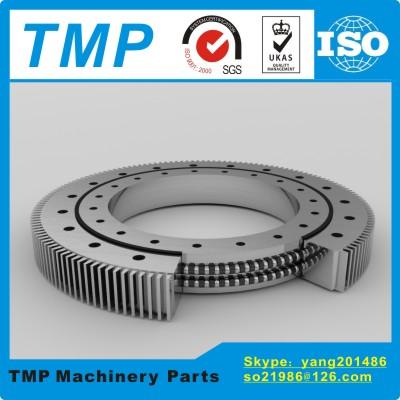

VSI200544N Slewing Bearings (444x616x56mm) Machine Tool Bearing TMP Band slewing turntable use
VSI200544N Slewing Bearings (444x616x56mm) Machine Tool Bearing TMP Band slewing turntable use
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
VSI200544N
Certification :
ISO9001:2008
Description
VSI200544N Slewing Bearings (444x616x56mm) Machine Tool Bearing TMP Band slewing turntable use
A . Slewing Bearings Parameters
Brand-TMP
Model number-VSI200544N
Inner ring(mm)-444
Outer ring(mm)-616
Width(mm)-56
Weight(Kg)-42
Materials-GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo
Series-VLI20
Lubrication type-Grease lubrication
Rolling elements-Ball
Load direction-Multi-load
Structure-Four Point Contact Ball,Internal Gear Teeth
B . VSI200544N Slewing Bearings Specification Sheet
DesignationMass
(kg)		Dimensions (mm)Fixing holesFixing
screws
Fr kN		Gear
teeth		Tooth forceBasic load
ratings
(axial)		Basic load
ratings
(radial)
DadiDidaWidthLanaLinid0mzFz norm
kN		Fz max
kN		dyn. Ca
kN		stat. C0a
kN		dyn. Cr
kN		stat. C0r
kN
VSI200544N42616444545.5542.5565903250532132.245667623.735188740123325

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly

costeffective.Due to their design, a single bearing can reliably support radial,axial and tilting moment

loads. It is therefore possible in many cases to replace bearing arrangements comprising a

combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:

Four point contact slewing bearings and crossed roller slewing bearings.

Four point contact bearing, light series 20, internal gear teeth,selectable internal clearance, sealed,

lubrication nipple on circumference of ring without teeth

VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N;
VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N;
VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094;
VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N;
VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N;
VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094;
VSA250755N,VSA250855N,VSA250955N,VSA251055N;
VSI250755N,VSI250855N,VSI250955N,VSI251055N;
VSU250755,VSU250855,VSU250955,VSU251055;
VA140188V,VA160235N,VA160302N,VA250309N;
VI160288N,VI140326V,VI160420N;
VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680;

Product Application:Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine,

wind turbines etc.

Categories:Slewing Bearings
Other Ball Bearings
Related Search:VSI200544N Bearing,VSI200544N Slewing Bearing,VSI200544N Turntable Bearing,VSI200544N Slewing Ring,444x616x56mm Bearing
