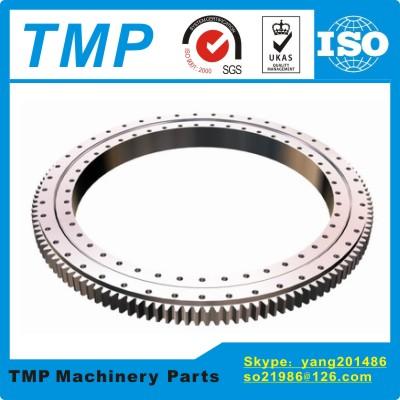

VSA200544N Slewing Bearings (472x640.3x56mm) Machine Tool Bearing TMP Band slewing ring bearing
VSA200544N Slewing Bearings (472x640.3x56mm) Machine Tool Bearing TMP Band slewing ring bearing
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
VSA200544N
Certification :
ISO9001:2008
Description
VSA200544N Slewing Bearings (472x640.3x56mm) Machine Tool Bearing TMP Band slewing ring bearing
A . Slewing Bearings Parameters
Brand-TMP
Model number-VSA200544N
Inner ring(mm)-472
Outer ring(mm)-640.3
Width(mm)-56
Weight(Kg)-43
Materials-GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo
Series-VSA20
Lubrication type-Grease lubrication
Rolling elements-Ball
Load direction-Multi-load
Structure-Four Point Contact Ball,External Gear Teeth
B . VSA200544N Slewing Bearings Specification Sheet
DesignationMass
(kg)		Dimensions (mm)Fixing holesFixing
screws
Fr kN		Gear
teeth		Tooth forceBasic load
ratings
(axial)		Basic load
ratings
(radial)
DadiDidaWidthLanaLinid0mzFz norm
kN		Fz max
kN		dyn. Ca
kN		stat. C0a
kN		dyn. Cr
kN		stat. C0r
kN
VSA200544N43640.3472545.5542.5565852849832115.6630610521.331.5188740123325

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly

costeffective.Due to their design, a single bearing can reliably support radial,axial and tilting moment

loads. It is therefore possible in many cases to replace bearing arrangements comprising a

combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:

Four point contact slewing bearings and crossed roller slewing bearings.

Four point contact bearing, standard series 20, external gear teeth, selectable internal clearance,

sealed, lubrication nipple on circumference of ring without teeth

VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N;
VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N;
VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094;
VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N;
VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N;
VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094;
VSA250755N,VSA250855N,VSA250955N,VSA251055N;
VSI250755N,VSI250855N,VSI250955N,VSI251055N;
VSU250755,VSU250855,VSU250955,VSU251055;
VA140188V,VA160235N,VA160302N,VA250309N;
VI160288N,VI140326V,VI160420N;
VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680;

Product Application:Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine,

wind turbines etc.

Categories:Slewing Bearings
Other Ball Bearings
Related Search:VSA200544N Bearing,VSA200544N Slewing Bearing,VSA200544N Turntable Bearing,VSA200544N Slewing Ring,472x640.3x56mm Bearing
