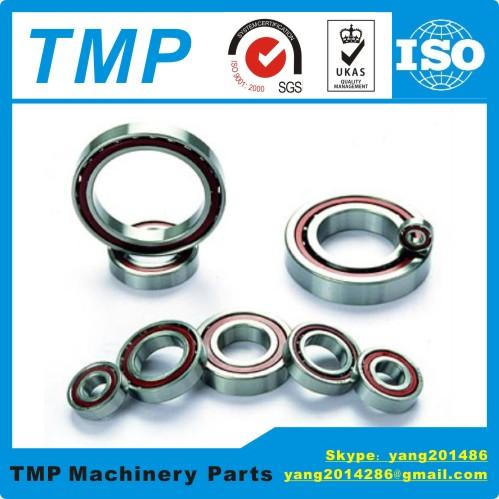

760315TN1 P4 Angular Contact Ball Bearing (75x160x37mm) Machine Tool Bearing Open Type Ball screw support bearing
760315TN1 P4 Angular Contact Ball Bearing (75x160x37mm) Machine Tool Bearing Open Type Ball screw support bearing
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
760315TN1
Certification :
ISO9001:2008
Description

760315TN1 P4 Angular Contact Ball Bearing (75x160x37mm)

Machine Tool Bearing Open Type Ball screw support bearing

A . Angular Contact Ball Bearing Parameters
Brand-TMP
Structure-Angular Contact ball
Model number-760315TN1 Ball screw bearing
Inner ring(mm)-75
Outer ring(mm)-160
Width(mm)-37
Weight(Kg)-3.79
Materials-Chrome steel/GCR15
Precision grade-P4
Lubrication type-Grease lubrication
Contact Angle-60°
Material(Ball)-Steel ball(SUJ2)
Number of Row-Single rows
Material(Cage)-PA
Application-ball screws,machine tool
Quality-High speed, Low noise and Long life
B . 760315 Angular Contact Ball Bearing Specification Sheet
DesignationPrincipal Dimensions
(mm)		Load ratings
(KN)		Limiting
speed		Preloads
(N)		weight
(Kg)
≈
dDBCr
Dynamic		Cor
Static		(r/min)
Grease		lightmedialheavy
76031575160371252553600725014500290003.79

Categories:Other Precision Bearings
Other Bearings
Angular Contact Ball Bearings
Related Search:760315TN1 P4,760315TN1 Angular Contact Ball Bearing,760315TN1 Ball Screw Bearing,760315TN1 Bearing,75x160x37mm Bearing
760315TN1 P4 Angular Contact Ball Bearing (75x160x37mm) Machine Tool Bearing Open Type Ball screw support bearing760315TN1 P4 Angular Contact Ball Bearing (75x160x37mm) Machine Tool Bearing Open Type Ball screw support bearing
C . 7603 series Angular Contact Ball Bearing Details

Series

Introduction

7603 Axial angular contact ball bearings are available as single, double or triple row

ready-to-fit units. They areself-retaining and comprise thick-walled,

geometrically stable outer rings, ball and cage assemblies and one-piece

or two-piece inner rings. In several series, the outer ring has through holes for

simple flange mounting to theadjacent construction.

Series

Model No.

760304TN1,760305TN1,760306TN1,760307TN1,760308TN1,760309TN1,760310TN1,

760311TN1,760312TN1,760313TN1,760314TN1,760315TN1,760316TN1,760317TN1,

760318TN1,760319TN1,760320TN1,760322TN1,760324TN1,760326TN1

Applications

The bearing rings are matched to each other such that a defined preload is achieved

when the rings are clamped in place using a precision locknut.
