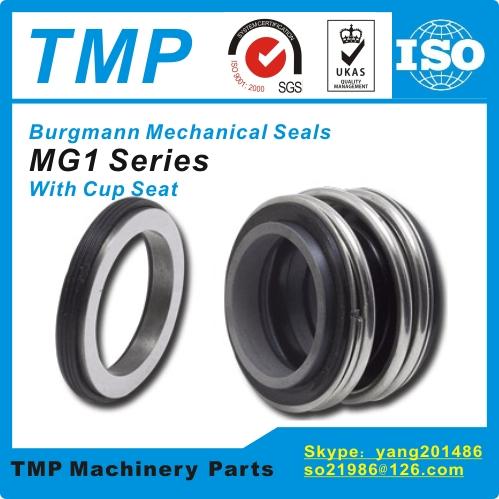

MG1-12mm Eagle Burgmann Mechanical Seals MG1 Series for 12mm Shaft Pump Rubber Bellow seals
MG1-12mm Eagle Burgmann Mechanical Seals MG1 Series for 12mm Shaft Pump Rubber Bellow seals
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
MG1-12
Certification :
ISO9001:2008
Description
Eagle Burgmann Mechanical Seals MG1 Series for 12mm Shaft Pump Seal-SIC/SIC/VITON
SeriesBurgmann Mechanical Seals MG1
Model NumberMG1-12mm
Shaft Size12mm
Introduction

Mechanical seals of the MG series are amongst the most commonly used. The bellows is not subjected to any

torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing

element and drive collar. The seal face is driven through the spring and “L“-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any

dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications

Application
Date

OPERATING LIMITS
Temperature:-20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s

Equivalent to:
• Burgmann MG1 seal
• Flowserve Pac-Seal 190
• Hecker HN 410SU
• Roten L3
Materials•Stationary Ring(Ceramic/SiC/TC)
•Rotary Ring(Carbon/SiC/TC)
•Secondary Seal(NBR/EPDM/VITON)
•Spring & Other Parts(SUS304/SUS316)
