MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) Rub
MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) Rub
Specifications
Place of Origin :
China
Brand Name :
TMP
Model Number :
MG13-65
Certification :
ISO9001:2008
Description

MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm)

Rubber Bellow Seals

SeriesBurgmann Mechanical Seals MG13 Series
Model NumberMG13-65
Shaft Size65mm
Introduction

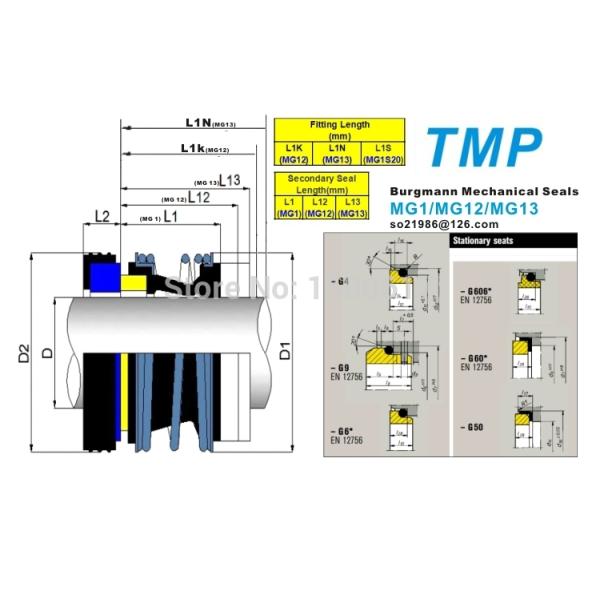

MG13:Dimensions, items and designationssame as for MG1, butwith an extended bellows tailto achieve thefitting length I1Naccording to EN12756 in combination with seat G6 or G60.

Application
Date

OPERATING LIMITS
Temperature: -20°C~+120°C
Pressure: ≤1.2MPa
Speed: ≤10m/s

Equivalent to:
• Burgmann MG13 seal
• Flowserve Pac-Seal 193
• Hecker HN 410NU
• Roten L3N
Materials• Stationary Ring(Ceramic/SiC/TC)
• Rotary Ring(Carbon/SiC/TC)
• Secondary Seal(NBR/EPDM/VITON)
• Spring & Other Parts(SUS304/SUS316)

MG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) RubMG13-65 Burgmann Mechanical Seals MG13 Series for Shaft Size 65mm Pumps (65x93.5x80mm) Rub
