48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for
48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for
Specifications
Place of Origin :
china
Brand Name :
BSL
Certification :
CE Rohs
Model Number :
18650 battery pack
Description

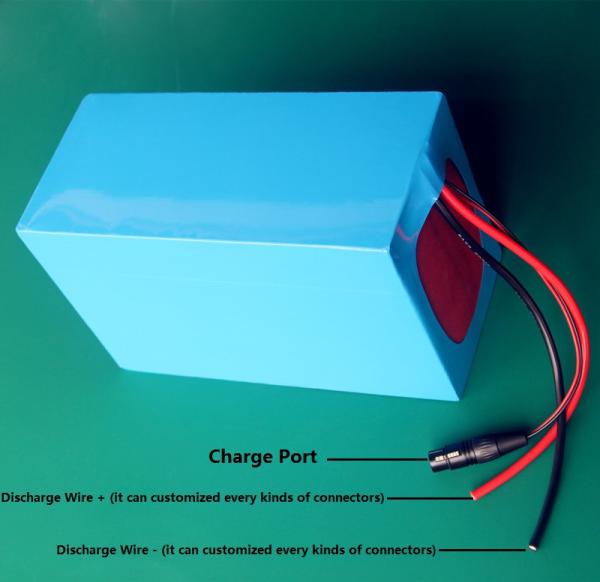

48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for E Bike Battery

Battery Specification

Type Ternary Battery Pack
1. Basic Characteristics
Weight 9.2 kg
Dimension(L*D*H) 132*136*260mm or customize
Working temperature Charge Temperature 0~45°C
Discharge Temperature -20~65°C
Retention of charge (store in one month) ≥95%
2. Technical Data
Rated Voltage 48V
Rated Capacity C1 ≥ 30Ah
Battery Resistance ≤100mΩ
Charge Way of Charge CC/CV(Constant Current;Constant Voltage)
Standard Charge Current 2A
Max Charge Current 5A
Max Charge Voltage 54.6V
Cell OverCharge Protection Voltage 4.2V/Cell
Discharge Continouns Discharge Current 30A
Peak Discharge Current 80A
Discharge Cut-off Voltage 39V
Cell Overdischarge Protection Voltage 3.0V/cell
Ratio Discharge 1C >96%C1
2C >93%C1
3C >90%C1
Cycle Life ≥ 800 Cycles
3. Safety Test
Short Circuit Safety Test No fire, No explosion
Overcharge Safety Test
Crush Safety Test
Needling Safety Test
Extrusion Safety Test
130°C High Temperature Safety Test

48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for48v1000W Electric Bike Lithium Battery 48V 30Ah Li-ion 18650 battery with 30A BMS for
