IPX5 and IPX6 Stainless Steel water jet nozzle with calibration
IPX5 and IPX6 Stainless Steel water jet nozzle with calibration
Specifications
Place of Origin :
China
Brand Name :
BONAD
Certification :
yes
Model Number :
BND-PZ
Description

IPX5 and IPX6 Stainless Steel water jet nozzle with calibration

Product Description

IPX5 and IPX6 Stainless Steel water jet nozzle with calibration

Application:

IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.

Instrument

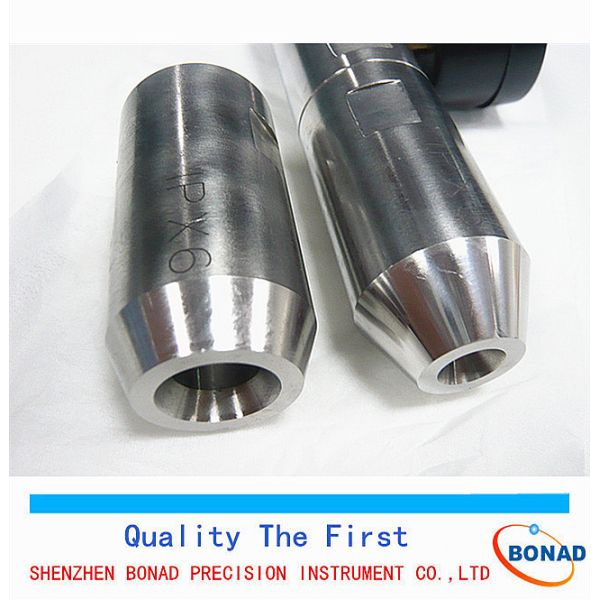

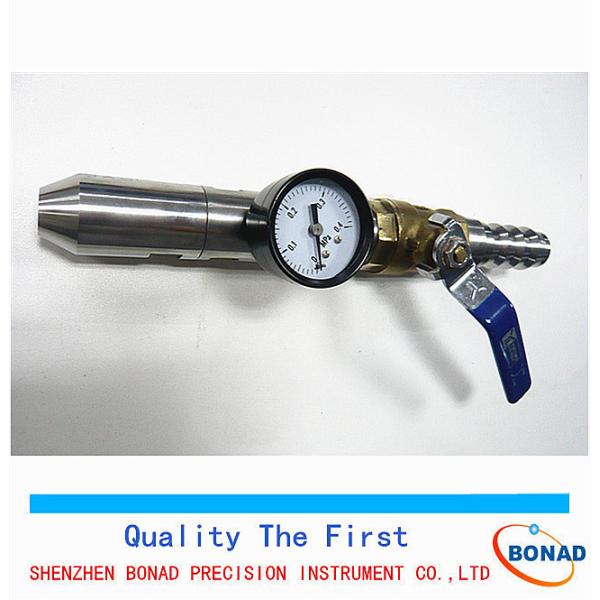

The IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Features

  • Stainless steel nozzles
  • Valve for water flow regulation and shut off
  • Pressure gauge
  • Hose connector
  • Interchangeable nozzles

Conforms To

IEC60529, 60598-1, 60335-1, EN60335-1, 60950,60529, GB4208,2423., 7000.1 GB/T4942.2, 4706.1

item

Model

TB-TPX5/X6

IPX5 aperture

6.3mm

IPX6 aperture

12.5mm

IPX5 water flow rate

12.5±0.625L/min

IPX6 water flow rate

100±5L/min

Note:

1.Adjust the water flow according to regulation.

2.Test the product in 2.5m-3m in front of the spray.

IPX5 and IPX6 Stainless Steel water jet nozzle with calibrationIPX5 and IPX6 Stainless Steel water jet nozzle with calibrationIPX5 and IPX6 Stainless Steel water jet nozzle with calibrationIPX5 and IPX6 Stainless Steel water jet nozzle with calibration

IPX5 and IPX6 Stainless Steel water jet nozzle with calibrationIPX5 and IPX6 Stainless Steel water jet nozzle with calibration

Company Information

IPX5 and IPX6 Stainless Steel water jet nozzle with calibrationIPX5 and IPX6 Stainless Steel water jet nozzle with calibration

How to order

1. Place the order and pay directly if you have no question to the product.

2. If you have some questions, don't bother to send me a message to ask.

3. After you have paid the money, we will deliver the goods as soon as possible.

Packaging and Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact.

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days.
