Rental Use Full Color Indoor P4.81
Rental Use Full Color Indoor P4.81
Specifications
Place of Origin :
Shenzhen
Brand Name :
GCL
Certification :
CE,RoHs,CCC,ISO9001
Description

Quick Details

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:GCL
  • Model Number:GC-IOS-P4.81
  • Usage:Indoor
  • Tube Chip Color:Full Color
  • Display Function:Video
  • Pixels:4.81mm
  • Screen Dimension:as you need
  • Pixel configuration:1R1G1B
  • Control System:Linsn/Colorlight/Mooncell
  • LED Standard:SMD 3 in 1 3528
  • Viewing angle:H150, V120
  • LED Chip:Opto&Silan
  • Certificates:CE&ROHS&CCC&ISO9001
  • Cabinet weight:8KG
  • Warranty:Two years
  • Material:Aluminum
  • Driving method:1/16 scan

Packaging & Delivery

Packaging Details:1.Wooden case or Flight case 2.Also can according to your requirement 3.Flight case used for rent
Delivery Detail:1-50 sqm,within 2 weeks;50-100 sqm,within 3 weeks.

Rental Use Full Color Indoor P4.81

Rental Use Full Color Indoor P4.81

Features:

1.Rental box adopt the die casting aluminum forming, product strength, precision and seamless surface of the whole screen.

2.Die casting aluminum quality improve heat dissipation performance, reduce the light failure, extend the service life of the body

3.The screen body easy maintenance, on-site module can change from house box to maintenance

4. Based on the rapid connection between Body design, assembling cabinet is convenient, fast, don't need the lock bolt

5. Body slim, only 10.5 kg, easy to install

6. Product general spacing is compatible with a variety of point, the product easy to upgrade.

7 noisless,low heat and low radiation

Technical Parameters:

ParametersIndoor Die-casting LED display series(576*576)
Pixel Pitch (mm)3.84mm4.0mm4.8mm5.33mm6mm
Pixel density(pix/m2)6781762500434023520027777
LED TypeSMD2020SMD3528
Viewing AngleH:140,V:140
Brightness(nits)15001600250025002000
Drive Method1/151/121/151/91/12
Color Depth16bit
Refresh Rate(Hz)600HZ1200HZ
Module Size (mm)288×288
Cabinet Size(mm)576×576
Cabinet MaterialDie-cast aluminum
Cabinet weight(kg)10.5
Voltage110/250V
Average.power(W / m2)260230170270190
Max.power (W / m2)780670500800560
IP GradeIP31
Operating temperature/humiditytemperature:-20°C~ 50°C humidity:10~90%RH
Storage temperature/ humiditytemperature:-40°C~ 60°C humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCCC,CE,Rosh

ParametersIndoor Die-casting LED display series(576*576)
Pixel Pitch (mm)3.84mm4.0mm4.8mm5.33mm6mm
Pixel density(pix/m2)6781762500434023520027777
LED TypeSMD2020SMD3528
Viewing AngleH:140°,V:140°
Brightness(nits)15001600250025002000
Drive Method1/151/121/151/91/12
Color Depth16bit
Refresh Rate(Hz)600HZ1200HZ
Module Size (mm)288×288
Cabinet Size(mm)576×576
Cabinet MaterialDie-cast aluminum
Cabinet weight(kg)10.5
Voltage110/250V
Average.power(W / m2)260230170270190
Max.power (W / m2)780670500800560
IP GradeIP31
Operating temperature/humiditytemperature:-20°C~ 50°C humidity:10~90%RH
Storage temperature/ humiditytemperature:-40°C~ 60°C humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCCC,CE,Rosh

Application area:

·---Indoor advertising, digital billboards, advertising for big companies.

·---Stage background

·---Airports, bus stations and railway passenger terminals.

·---Department stores, banks and car dealerships.

·---Show-business, concerts, festivals, and other public events.

Services:

♥Two years warranty,also provide you free spare parts such as modules, power supply ,LED lamps,lines etc.

♥We can according to customers' requirements to design cabinet size.

Cabinet:

Rental Use Full Color Indoor P4.81

Rental Use Full Color Indoor P4.81Rental Use Full Color Indoor P4.81Rental Use Full Color Indoor P4.81Rental Use Full Color Indoor P4.81

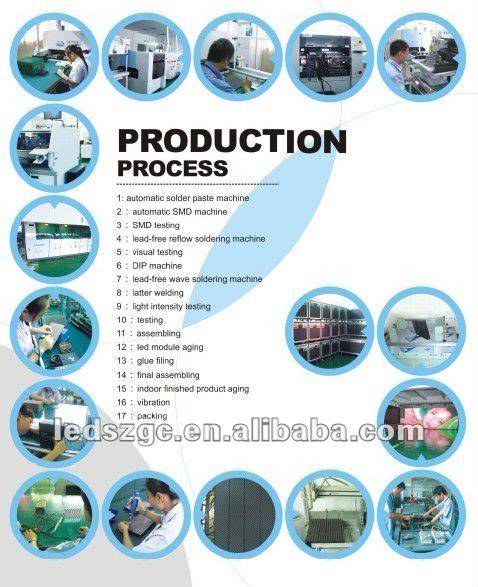

Manufacturing process:

Rental Use Full Color Indoor P4.81

Compliances:

Rental Use Full Color Indoor P4.81
