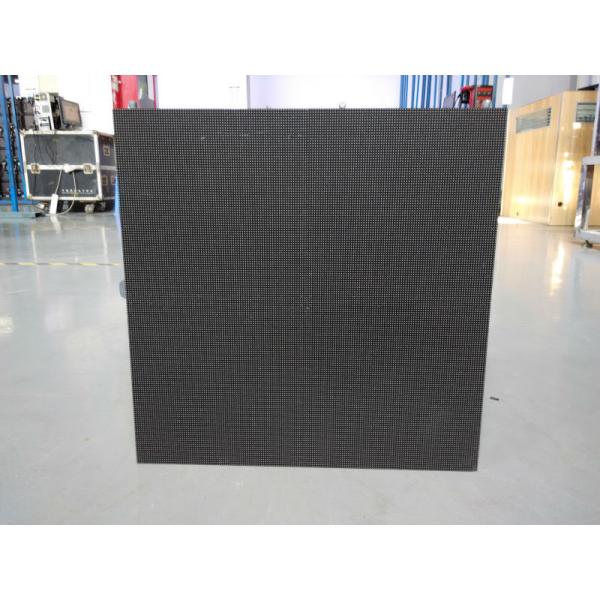

2015 LED HD Indoor Fixed Installation Video Display P3
2015 LED HD Indoor Fixed Installation Video Display P3
Specifications
Place of Origin :
shenzhen,China mainland
Brand Name :
GCL
Certification :
CE,RoHS,ISO9001,CCC
Description

2015 LED HD Indoor Fixed Installation Video Display P3

Product Description

1. high definition

2. high level up degree

3. good price and high quality

4. energy saving and environment protection

5. precise image, no masaic and flicker

6. long lifespan


Module		 specification P3
Pixel pitch 3mm
pixel configuaration 1R1G1B
density 111111dot/m2
module size 192*96mm
module resolution 64*32 dot
led type SMD2121
brightness more than 1000cd/m2
Cabinet cabinet size 768*768mm
cabinet resolution 256*256dot
viewing angle H: 160º ; V: 160 º
protective grade IP34
max power consumption 1200w/m2
average power consuption 480w/m2
best viewing distance 3-10m
weight 7kg
material customized
Screen operation temperature -20 ℃~50 ℃
operation humidity 10%-90%RH
driving method 1/16 scan
woking voltage AC85~264V(47-63hz)
colors 687 Million Colors
refreash rate 1200hz
smoothness ±0.1mm
MTBF >10,000hr
lifespan >100,000hr
LED failed <0.0001(zero when delivery)
Control system and LED Adopted control system PCTV Board + DVI Board + Control Board + Network cable Transmission
video signal RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
LED parameter R: (620-623nm) G: (519-522nm) B: (466-467 nm)
R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd)
Brightness level Manual adjustment: 256 levels for R, G, B
Automatic adjustment: 16 grades for each color

2015 LED HD Indoor Fixed Installation Video Display P3

2015 LED HD Indoor Fixed Installation Video Display P3

Packaging & Shipping

Delivery: 18-25 working day after payment.

Package: carton case, wooden case, flight case

By ship, By air, By DHL, By TNT, etc

2015 LED HD Indoor Fixed Installation Video Display P3

Our Services

Installation:

Easy for fit and dismantle, the design is convenient and safe for installer. The small size can be matching together as a large size by our convenient design.

Application:

Concert, Night club, Live show, Fashion Theater, Stage background, TV show, Wedding Decoration, Bars, Disco Entertainment, Family party, Outdoor party, and etc.

ODM Service:

Our ODM curtain’s size include 2x3m, 2x4m, 3x4m, 4x6m, 3x8m, triangle shape, and etc. Customers can purchase sample at any time and we usually ship sample by DHL within one week.

OEM Service:

If you got any specific requirement, just tell us the size, shape, color of the LED and your favorite hung method, and etc. The cooperation details can be negotiated by both sides.

Our Services

Installation:

Easy for fit and dismantle, the design is convenient and safe for installer. The small size can be matching together as a large size by our convenient design.

Application:

Concert, Night club, Live show, Fashion Theater, Stage background, TV show, Wedding Decoration, Bars, Disco Entertainment, Family party, Outdoor party, and etc.

ODM Service:

Our ODM curtain’s size include 2x3m, 2x4m, 3x4m, 4x6m, 3x8m, triangle shape, and etc. Customers can purchase sample at any time and we usually ship sample by DHL within one week.

OEM Service:

If you got any specific requirement, just tell us the size, shape, color of the LED and your favorite hung method, and etc. The cooperation details can be negotiated by both sides.
